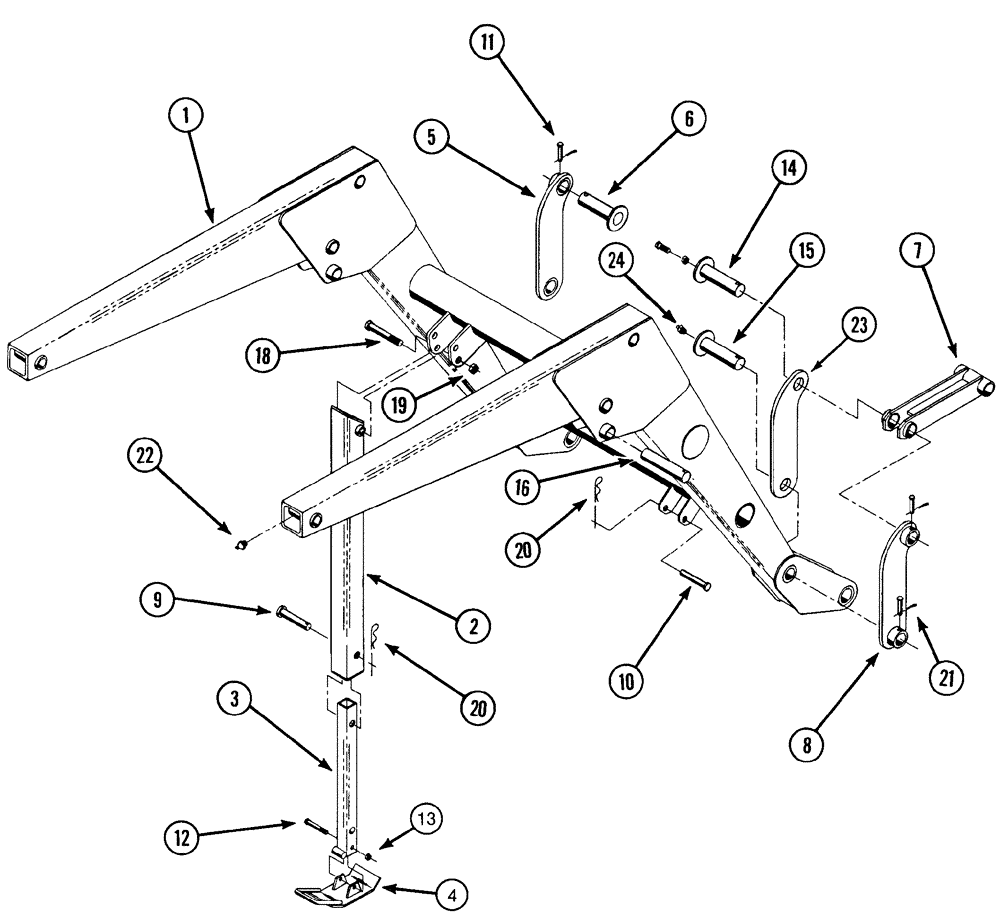

Запчасти Case IH 520 (9-02) - LIFT FRAME AND PARKING LEG (09) - CHASSIS/ATTACHMENTS

1

105061A1

CHASSIS

FRAME loader lift

1шт.

2

1985010C1

STAND

parking

2шт.

3

1985009C1

SUPPORT TUBE

TUBE lower parking stand

2шт.

4

1985008C2

FOOT

parking stand

2шт.

5

105059A1

LINK ASSY.

left

1шт.

6

105055A1

PIN ASSY.

headed, 1-1/8 x 6-5/16 inch

1шт.

7

105057A1

LINK

front

2шт.

8

105058A1

LINK ASSY.

right

1шт.

9

439-11072

HEADED PIN,5/8" x 4 1/2"

headed, 5/8 x 4-1/2 inch, grade 2

2шт.

10

439-11064

HEADED PIN,5/8" x 4"

headed, 5/8 x 4 inch, grade 2

2шт.

11

427-6225

CLEVIS PIN,3/8" x 2 1/4"

hardened, 3/8 x 2-1/4 inch

6шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

13

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

14

105054A1

PIN ASSY.

1-1/8 x 6-7/16 inch

1шт.

15

1985034C1

PIN

1-1/8 x 6-7/16 inch

2шт.

16

1985032C1

PIN

1-5/16 x 5-9/16 inch

2шт.

18

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

19

231-14412

LOCK NUT,3/4"-10, GB

hex, NC

2шт.

20

1978737C1

COTTER PIN,Int, 1/8" x 49mm

hair

4шт.

21

432-612

COTTER PIN,3/32" x 3/4"

6шт.

22

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 1-5/8 inch

2шт.

23

105060A1

BAR

LINK

2шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
