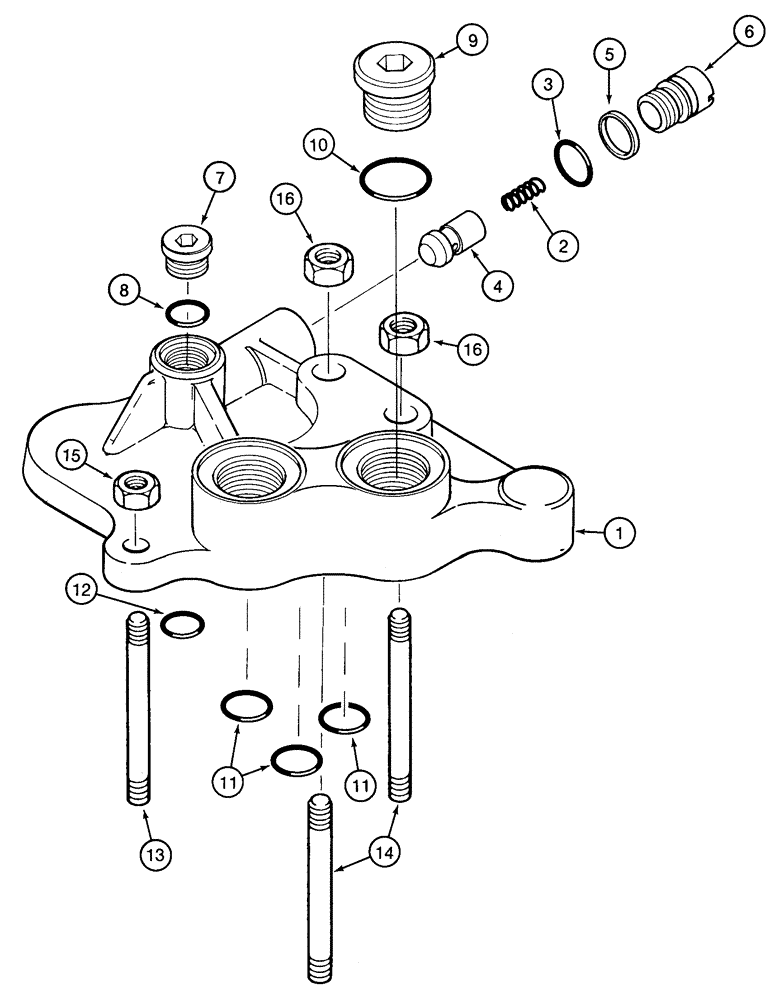

Запчасти Case IH 520 (8-36) - POWER BEYOND PLATE, REMOTE AUXILIARY VALVE END COVER (08) - HYDRAULICS

1346337C2

COVER ASSY

power beyond, Includes: Ref. 1 - 10

1шт.

1

1346336C1

COVER

end

1шт.

1542563C1

KIT

ASSY., lock, Includes: Ref. 2 - 6

1шт.

2

1994581C1

SPRING,6.1mm OD x 31.1mm L

load check

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG logic check

1шт.

5

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

6

NSS

NOT SOLD SEPARAT

BODY logic check valve, order 1542563C1

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 8

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 10

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Cover to valve

3шт.

12

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

13

1346128C3

TRUSS ROD

STUD tie, used with two auxiliary valves

1шт.

13

1346130C3

TRUSS ROD

STUD tie, 10 mm, used with three auxiliary valves

1шт.

14

1346131C3

TRUSS ROD

STUD tie, used with two auxiliary valves

2шт.

14

1346131C3

TRUSS ROD

STUD tie, 12 mm, used with three auxiliary valves

2шт.

15

824-1410

NUT,M10, Cl 5

hex, 10 mm - 1.5

1шт.

16

829-1412

NUT,M12, Cl 10.9

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
