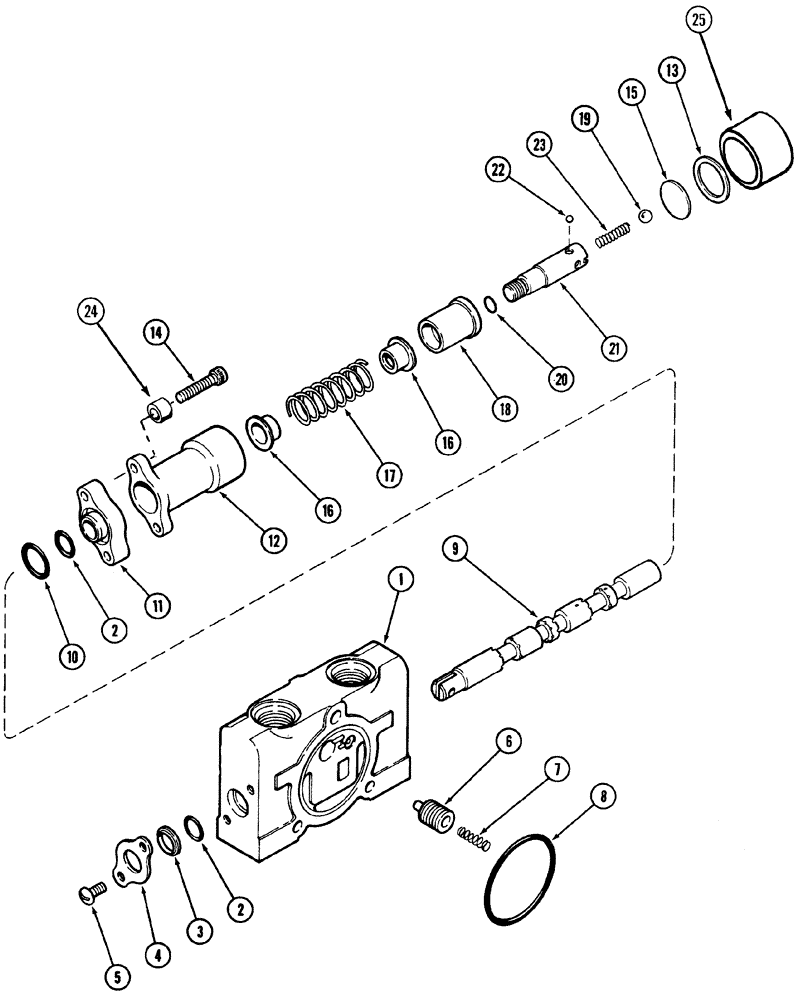

Запчасти Case IH 520 (8-32) - EXTERNAL HYDRAULIC CONTROL VALVE, DETENT BOOM SPOOL SECTION (08) - HYDRAULICS

105080A1

VALVE

ASSY., control, two spool hydraulic, Includes: 105078A1 and Ref. 1 - 25

1шт.

105078A1

KIT

SECTION ASSY., detent boom

1шт.

1

NSS

NOT SOLD SEPARAT

BODY spool section, order 105078A1

1шт.

2

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

detent spool

2шт.

3

S111870

OIL SCRAPER RING

SEAL

1шт.

4

S111865

PLATE

seal

1шт.

5

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

machine, pan Phillips, 1/4 NC x 3/8 inch

2шт.

6

1344738C1

PISTON

compensator

1шт.

7

1344737C1

SPRING

compression

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL valve , order 105078A1

1шт.

10

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

11

1346860C1

SPACER

CAP spool

1шт.

12

1344724C1

CAP

spool detent

1шт.

13

1344715C1

RING

retaining

1шт.

14

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

2шт.

15

1344719C1

PLATE

spacer

1шт.

16

1344732C1

SEAT

spring

2шт.

17

S111867

SPRING

plunger

1шт.

18

105082A1

SLEEVE

detent

1шт.

19

23206R1

BALL,5/16" Dia, Stainless

1шт.

20

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

21

1344730C1

END

PIN spool detent

1шт.

22

23204R1

BALL,7/32" Dia, Stainless

4шт.

23

1344718C1

SPRING

detent

1шт.

24

1346861C1

SPACER

bolt

1шт.

25

1540123C1

COVER

end

1шт.
