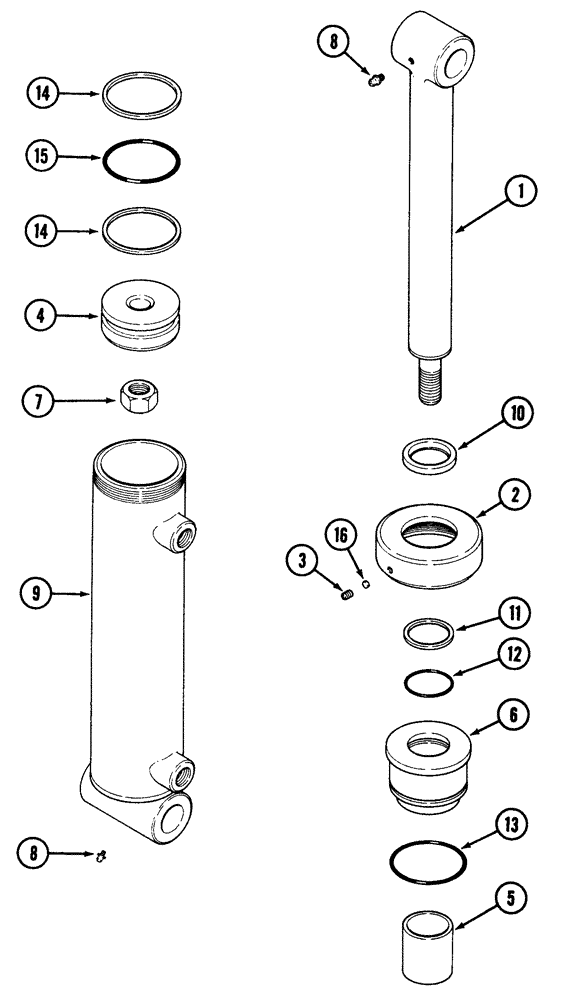

Запчасти Case IH 520 (8-24) - GRAPPLE CYLINDER (08) - HYDRAULICS

T57744

CYLINDER

ASSY., 2-1/2 (64) ID x 8-3/4 inch (222 mm) stroke grapple, Includes: Ref. 1 - 9

1шт.

1

T57745

ROD

piston

1шт.

2

T57599

CAP ASSY.

head cylinder

1шт.

3

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.

4

B17273

PISTON

cylinder

1шт.

5

T58030

SPACER

piston

1шт.

6

T50088

HEAD

cylinder

1шт.

7

425-1112

NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

9

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

T51786

SEAL KIT

KIT, Includes: Ref. 10 - 16

1шт.

T51786 seal kit contains items not used in this application.

1шт.

10

A41785

WIPER SEAL

piston rod

1шт.

11

388969R1

BACK-UP RING

1шт.

12

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

13

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

14

378733R1

BACK-UP RING

backup

2шт.

15

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

16

T55068

PLUG

nylon

1шт.
