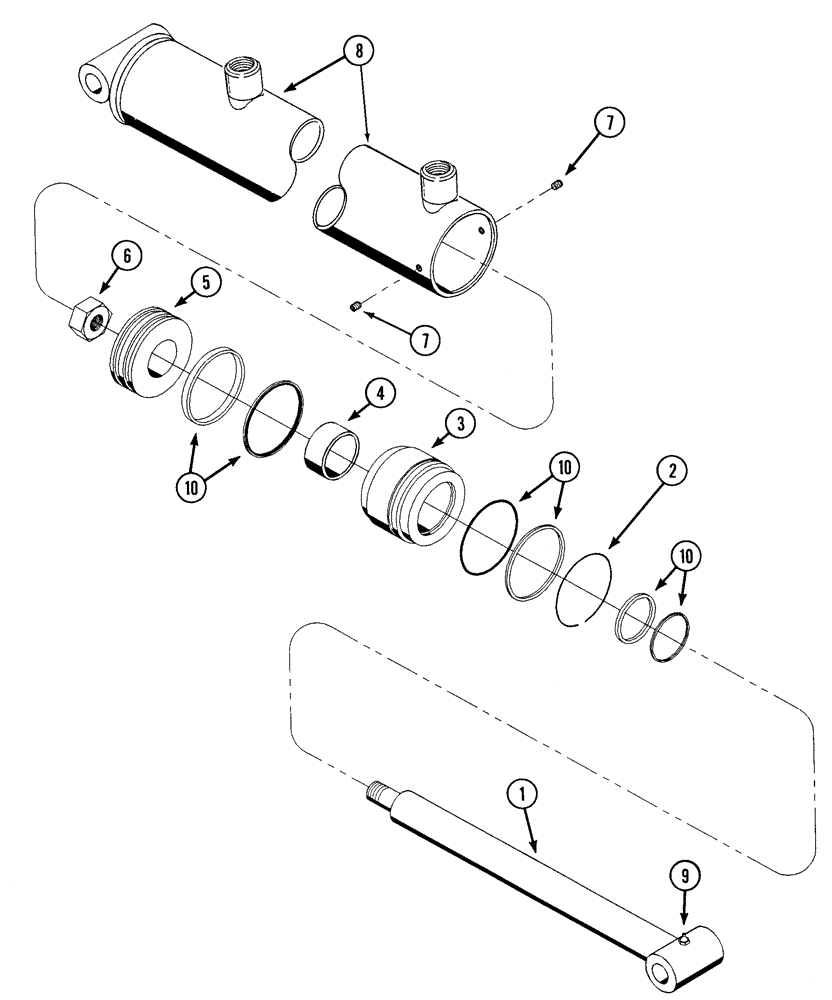

Запчасти Case IH 520 (8-22) - BUCKET CYLINDER (08) - HYDRAULICS

105064A1

CYLINDER,Double Acting, 44.45mm Rod, 647.7mm Stroke

ASSY., 3 (76) ID x 25-1/2 inch (648 mm) stroke bucket, Includes: Ref. 1 - 8

2шт.

1

105074A1

ROD ASSY.

piston

1шт.

2

1978777C1

RING

retainer

1шт.

3

105075A1

PINION CARRIER

GEAR CARRIER HEAD cylinder

1шт.

4

T58161

SPACER

piston

1шт.

5

105076A1

PISTON

cylinder

1шт.

6

131-914

NUT,1"-14

hex, self-locking, 1-14 inch

1шт.

7

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, 1/4 NC x 1/4 inch, cup pt

2шт.

8

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

10

105077A1

SEAL KIT

seal, see illustration

1шт.
