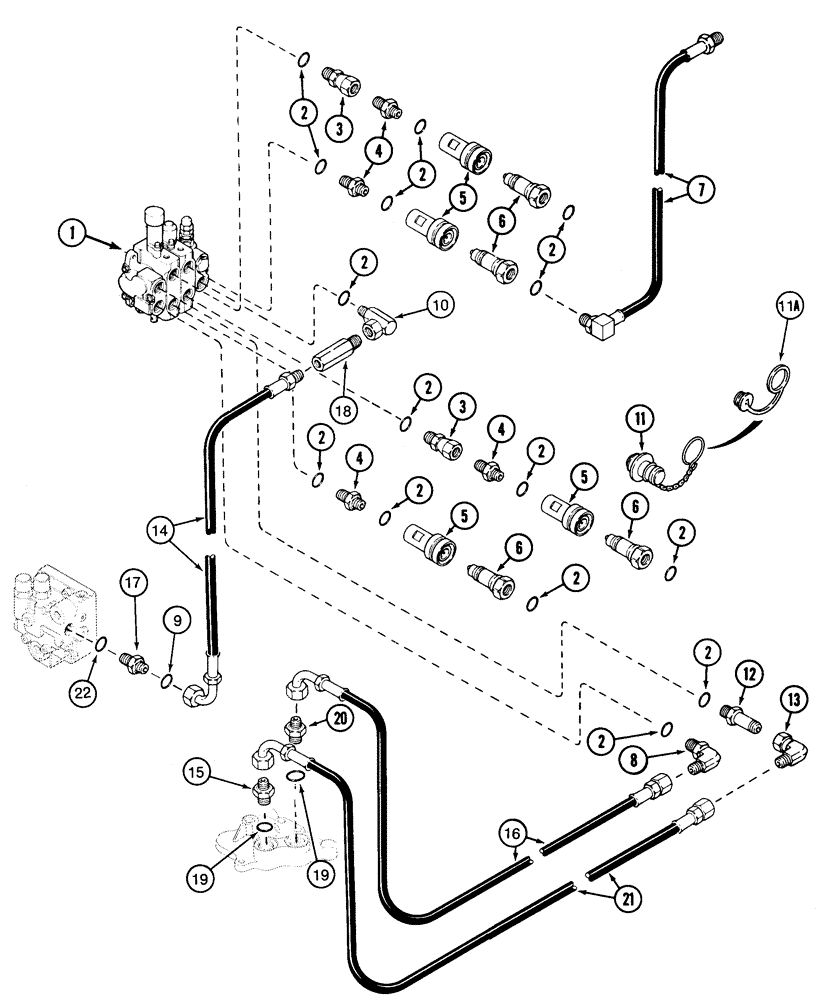

Запчасти Case IH 520 (8-13A) - EXTERNAL VALVE HYDRAULICS, TRACTORS WITH CAB, SIGNAL LINE HOOKED TO TRACTOR COMPENSATOR (08) - HYDRAULICS

1

105080A1

VALVE

ASSY., control, two spool, see Figure 8-30

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

15шт.

3

T55228

FITTING

CONNECTOR swivel, 7/8-14 inch thread

2шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

4шт.

5

1272400C1

COUPLING

self-sealing, female

4шт.

6

1272399C2

QUICK MALE COUPLING

self-sealing, male, 7/8 inch NF

4шт.

7

1985055C1

HOSE

3/8 (10) ID x 60 inch (1524 mm) long

4шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ELBOW, 90°, 7/8-14 adj O-ring x 1/2 inch swivel str thread

1шт.

11

T57615

PLUG

coupler dust, if used

4шт.

11a

195608A1

CAP

PLUG coupler dust, if used

4шт.

12

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight 7/8-14 inch flare x O-ring boss

1шт.

13

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

14

105114A1

HOSE ASSY.

3/8 (10) ID x 72 inch (1829 mm) long, signal

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss

1шт.

16

1344851C1

HOSE

1/2 (13) ID x 122 inch (3099 mm) long, return

1шт.

17

1534787C1

FITTING

ADAPTER ASSY., screen, component parts are not serviced separtately

1шт.

18

T53145

CHECK VALVE

1/2 inch

1шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

20

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straighT, 7/8-14 flare x 1-1/16-12 inch O-ring boss

1шт.

21

105115A1

HOSE ASSY.

3/4 (19) ID x 122 inch (3099 mm) long, supply

1шт.

1985078C1

KIT

coupler tag, color-coded

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
