(8-10) - AUXILIARY VALVE HYDRAULICS, REMOTE FOUR HOSE KIT

Запчасти Case IH 520 (8-10) - AUXILIARY VALVE HYDRAULICS, REMOTE FOUR HOSE KIT (08) - HYDRAULICS

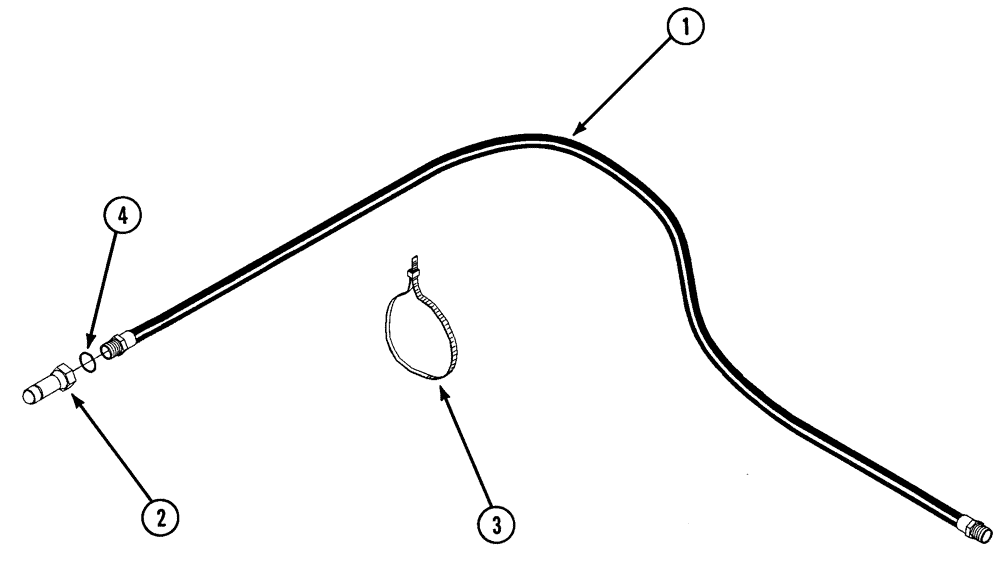

Схема запчастей Case IH 520 - (8-10) - AUXILIARY VALVE HYDRAULICS, REMOTE FOUR HOSE KIT (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1985060C1

HOSE

3/8 (10) ID x 180 inch (4572 mm) long

4шт.

2

1272399C2

QUICK MALE COUPLING

self-sealing, male, 7/8 inch NF

4шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

1985078C1

KIT

coupler tag, color-coded

1шт.
