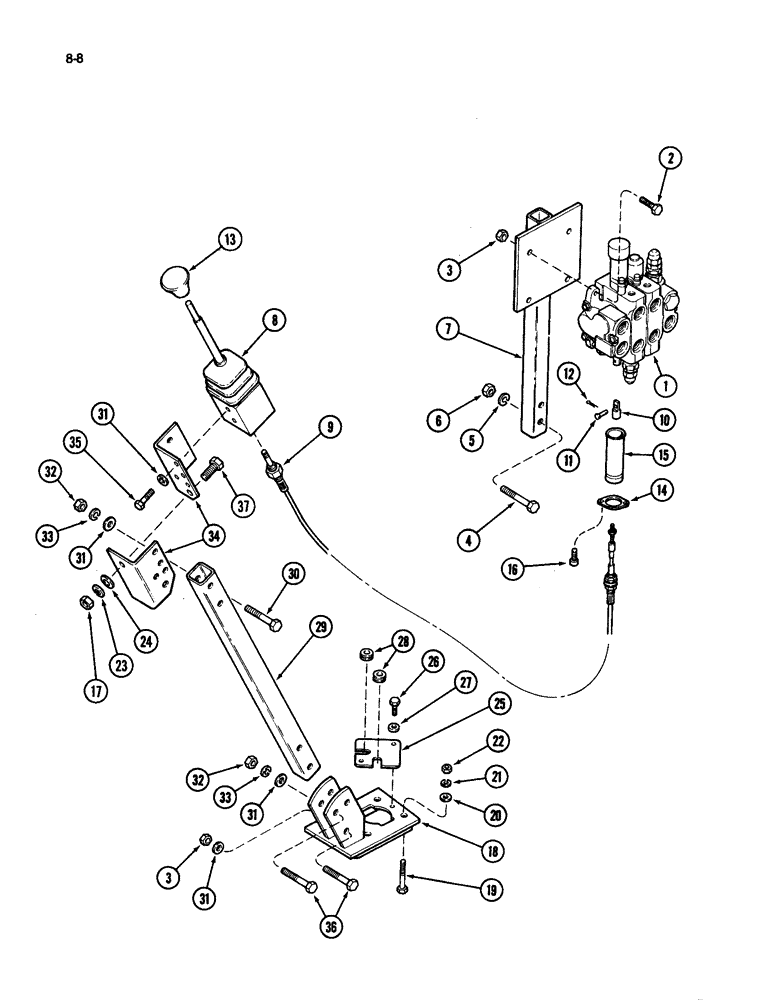

Запчасти Case IH 510 (8-08) - HYDRAULIC VALVE MOUNTING, CAB TRACTOR WITH EXTERNAL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic (See Figure 8-27)

1шт.

2

424-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

4шт.

3

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

4шт.

4

424-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

1980786C1

BRACKET

SUPPORT - valve mounting (4 cylinder tractor)

1шт.

8

REF

INSTRUCTION

LEVER ASSEMBLY - mono valve control (See Figure 8-32)

1шт.

9

1980794C1

CABLE

- control, 78 inch

2шт.

10

1980792C1

ADAPTER

- cable

2шт.

11

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

2шт.

12

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

13

53717DA

BUTTON

KNOB - mono control lever

1шт.

14

1980783C1

FLANGE

- cable support housing

2шт.

15

1340478C1

HOUSING

- support, cable

2шт.

16

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

SCREW - hex socket head, 1/4 NC x 3/4 inch

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

1980804C1

BRACKET

- remote control

1шт.

19

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

20

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 23/32 x 3/64 inch

4шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

25

1978991C1

COVER

PLATE - cover

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

27

21784R1

WASHER

- flat, 17/64 x 1/2 x 3/64 inch

2шт.

28

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 3/8 x 27/32 x 5/16 inch

2шт.

29

1980802C1

TUBE,38.1 mm OD

- bracket, control lever

1шт.

30

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

32

425-106

NUT,3/8"-16, Cl 5

3шт.

33

492-11038

LOCK WASHER,3/8"

3шт.

34

1980801C1

ANGLE

BRACKET - angle, control lever

2шт.

35

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

36

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

37

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.
