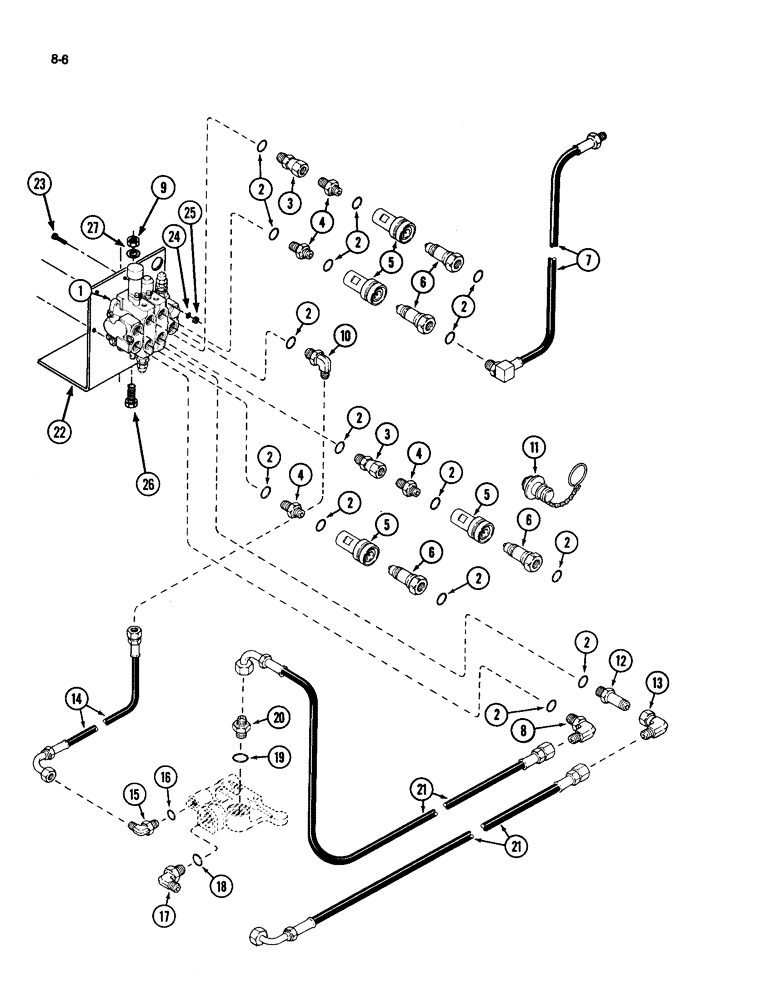

Запчасти Case IH 510 (8-06) - VALVE HYDRAULICS, TRACTORS WITH CABS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic (See Figure 8-27)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

15шт.

3

485313R1

FITTING

CONNECTOR - swivel, 5/8 inch tube

2шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

4шт.

5

1272400C1

COUPLING

COUPLER ASSEMBLY - hydraulic

4шт.

6

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread

4шт.

7

1980791C1

HOSE

- hydraulic, 3/8 x 60 inch

4шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread

1шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 deg adj, 9/16 flare x 7/8 inch O-ring

1шт.

11

1954133C1

PLUG

PLUG ASSEMBLY - ooupling dust

4шт.

12

218-5032

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

13

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flared

1шт.

14

1344852C1

HOSE

- hydraulic, 1/4 x 122 inch

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

1шт.

17

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

1шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

20

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

REDUCER - 37 degree, 7/8 x 1-1/16 boss end

1шт.

21

1344851C1

HOSE

- hydraulic, 1/2 x 122 inch

2шт.

22

1985079C1

BRACKET

- valve mounting (6 cylinder tractors)

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

4шт.

26

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1985078C1

KIT

- coupler tag, color coded

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
