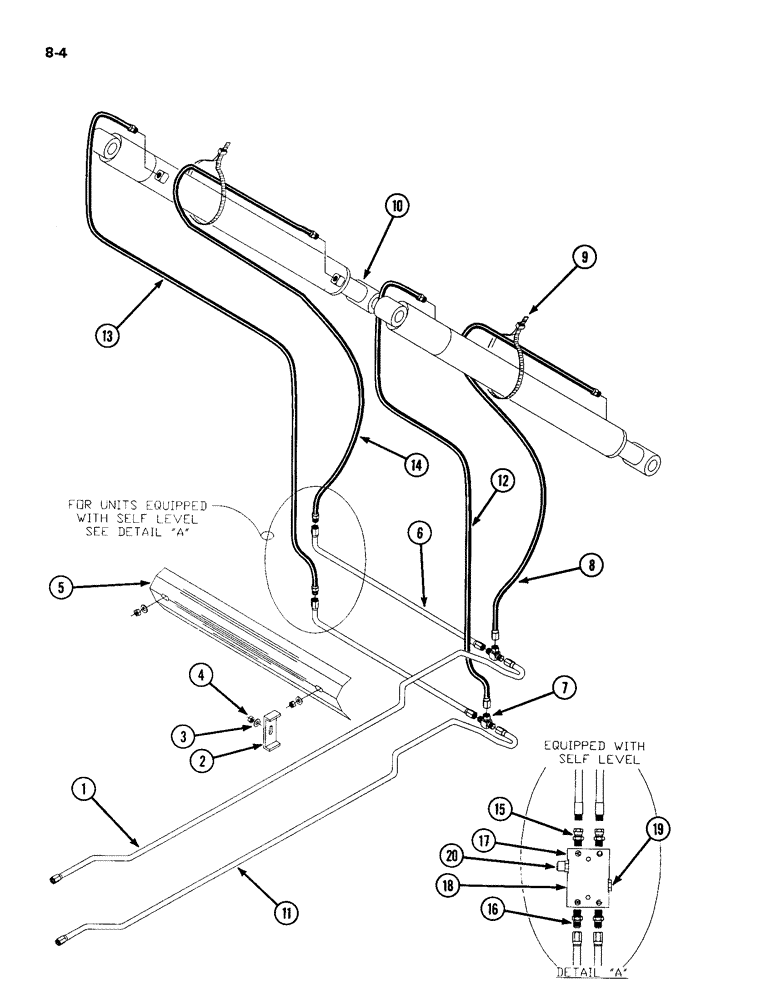

Запчасти Case IH 510 (8-04) - BUCKET HYDRAULICS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1985005C1
HYD TUBE,0.5" OD
TUBE - bucket rollback
1шт.
2
1985012C1
CLAMP
CLIP - hydraulic tube
2шт.
3
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
4шт.
5
1985014C1
COVER
- tube
1шт.
6
1985007C1
HYD TUBE,0.5" OD
TUBE - bucket, front
2шт.
7
T58068
FITTING
- tee swivel branch, 3/4-16 flare
2шт.
8
1985017C1
HOSE
- hydraulic, bucket rollback, 3/8 x 44 inch
2шт.
8
1985017C1
HOSE
- hydraulic bucket rollback, 3/8 x 44 inch, Gresen is the same as a Dana.
1шт.
9
386170C1
CABLE TIE,.30" x 27 1/2"
TIE - cable
2шт.
10
REF
INSTRUCTION
CYLINDER ASSEMBLY - bucket (See Figure 8-21)
2шт.
11
1985003C1
HYD TUBE,0.5" OD
TUBE - bucket dump
1шт.
12
1985018C1
HOSE
- hydraulic bucket dump, 3/8 x 28 inch
2шт.
12
1985018C1
HOSE
- hydraulic bucket dump, 3/8 x 28 inch, Gresen is the same as a Dana.
1шт.
13
1540355C1
HOSE
- 3/8 x 51.40 inch, Gresen is the same as a Dana.
1шт.
14
1540350C1
HOSE
- 3/8 x 35.90 inch, Gresen is the same as a Dana.
1шт.
15
1540356C1
FITTING
- straight, female x o-ring boss, Gresen is the same as a Dana.
2шт.
16
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Gresen is the same as a Dana.
2шт.
17
1540354C1
VALVE
double relief, Husco, RC, Includes: Ref. 18 - 20
1шт.
Some loaders may have a Dana valve installed. The Dana valve is P/N 244513A1.
1шт.
220721A1
SEAL KIT
seal
1шт.
For P/N 1540354C1 Valve using P/N D54590 Plug and P/N 1540361C1 Relief.
1шт.
18
1540360C1
VALVE
BODY - Gresen is the same as a Dana.
1шт.
19
129514A1
PLUG
ASSEMBLY no relief, 3/4-16 inch o-ring boss, replaces: P/N D54590
2шт.
20
1540361C1
VALVE
RELIEF - 3200 PSI, 3/4-16 inch, o-ring boss, Gresen is the same as a Dana.
2шт.
244513A1
VALVE
Dana, Includes: P/N 244510A1 Body, P/N 244511A1 Relief Valve, P/N 244508A1 Plug, P/N 220721A1 Seal Kit
1шт.
Gresen is the same as a Dana.
1шт.
