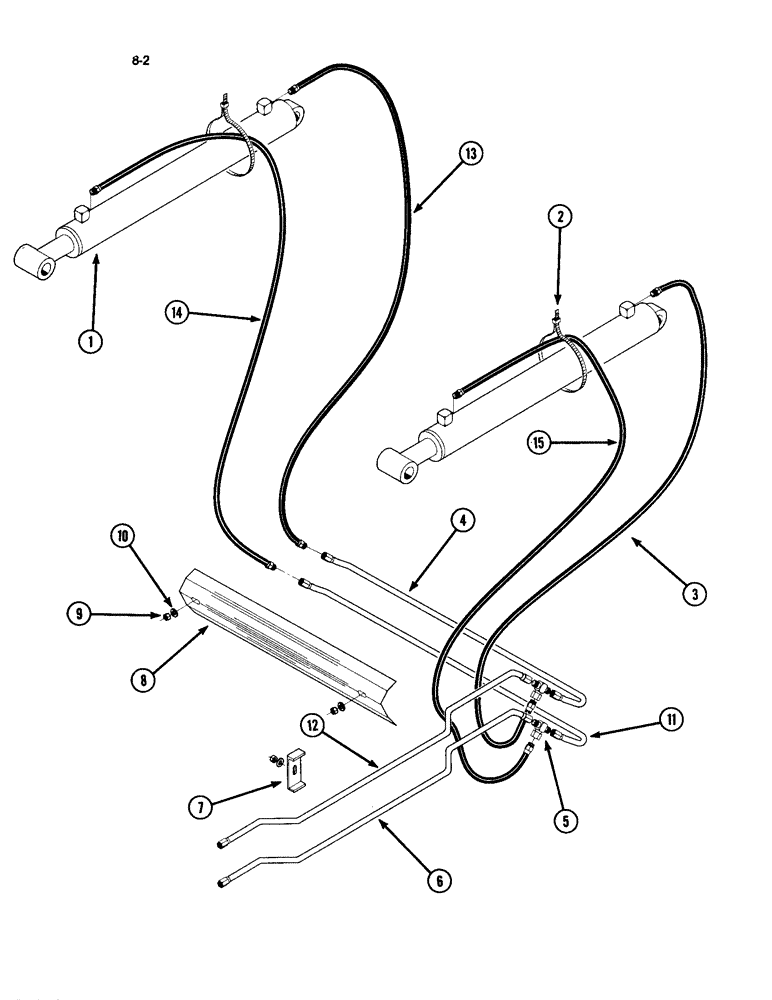

Запчасти Case IH 510 (8-02) - BOOM HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom (See Figure 8-23)

2шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

2шт.

3

1985021C1

HOSE

- right boom cylinder, raise, 3/8 x 25 inch

1шт.

4

1985001C1

HYD TUBE,0.5" OD, 940 mm Length

TUBE - front, raise

1шт.

5

T58068

FITTING

- tee, swivel branch, 3/4-16 flare

2шт.

6

1985002C1

HYD TUBE,0.5" OD

TUBE - boom, lower

1шт.

7

1985012C1

CLAMP

CLIP - hydraulic tube

2шт.

8

1985014C1

COVER

- tube

1шт.

9

131-217

LOCK NUT

NUT - nylon lock, 3/8 inch NC

4шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

11

1985000C1

HYD TUBE,0.5" OD

TUBE - front, lower

1шт.

12

1985004C1

HYD TUBE,0.5" OD

TUBE - boom, raise

1шт.

13

1985022C1

HOSE

- left boom cylinder, raise - 3/8 x 22 inch

1шт.

14

1985020C1

HOSE

- left boom cylinder, lower - 3/8 x 48 inch

1шт.

15

1985019C1

HOSE

- right boom cylinder, raise - 3/8 x 51 inch

1шт.
