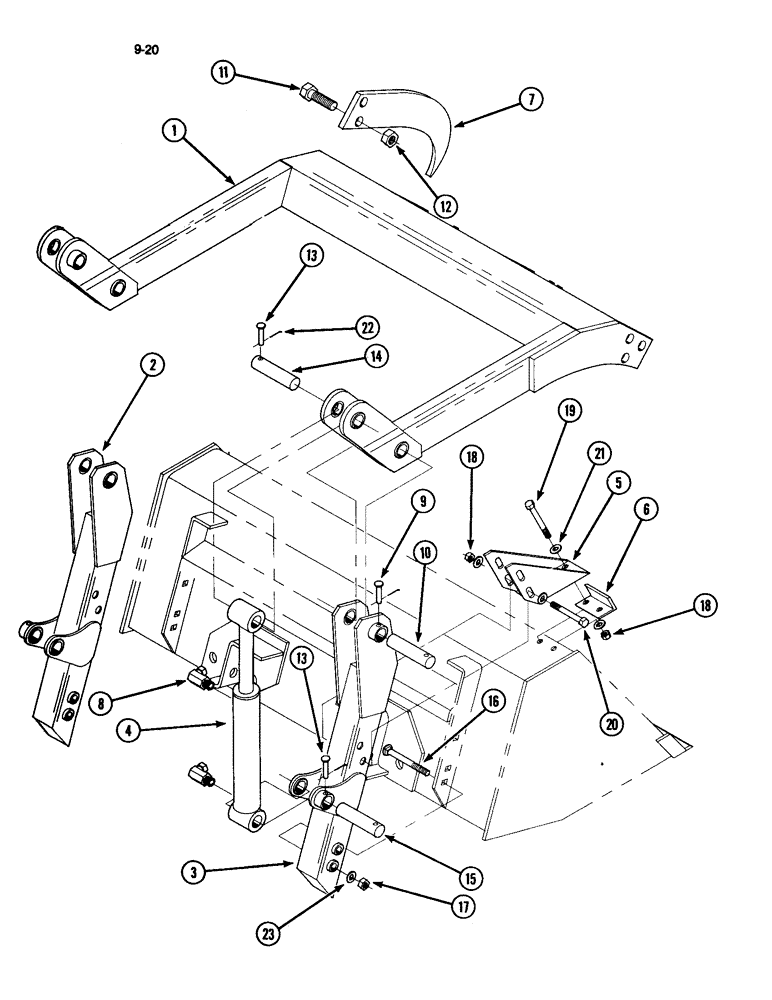

Запчасти Case IH 510 (9-20) - FOUR TINE GRAPPLE, GRAPPLE ATTACHMENT::1 (09) - CHASSIS/ATTACHMENTS

1

1985063C1

FRAME ASSY

ARM ASSEMBLY - swing

1шт.

2

1985071C1

PEDESTAL

ASSEMBLY - left

1шт.

3

1985070C1

PEDESTAL

ASSEMBLY - right

1шт.

4

REF

INSTRUCTION

CYLINDER ASSEMBLY - grapple (See Figure 8-25)

2шт.

5

1985068C1

ANGLE

- assembly

2шт.

6

1985064C1

ANGLE

- support

2шт.

7

1985089C1

TOOTH

- grapple

4шт.

8

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 90 deg, 3/4-16 adj O-ring x 1/2 inch swivel str pipe

4шт.

9

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch

2шт.

10

T58133

HEADLESS PIN,33.34mm OD x 170mm L

PIN - 1-5/16 x 6-5/8 inch

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

12

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

8шт.

13

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

14

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2 inch

2шт.

15

1344768C1

HEADLESS PIN,28.57mm OD x 168mm L

PIN - 1-1/8 x 6-1/2 inch

2шт.

16

433-1088

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

BOLT - round head square neck, 5/8 NC x 5-1/2 inch

6шт.

17

131-460

LOCK NUT,5/8"-11

NUT - hex, 5/8 inch NC

6шт.

18

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

8шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

20

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

4шт.

21

195-533

WASHER,1/2", SAE

- flat, 1/2 inch narrow

16шт.

22

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

6шт.

23

195-108

WASHER,5/8"

- flat 5/8 inch

6шт.
