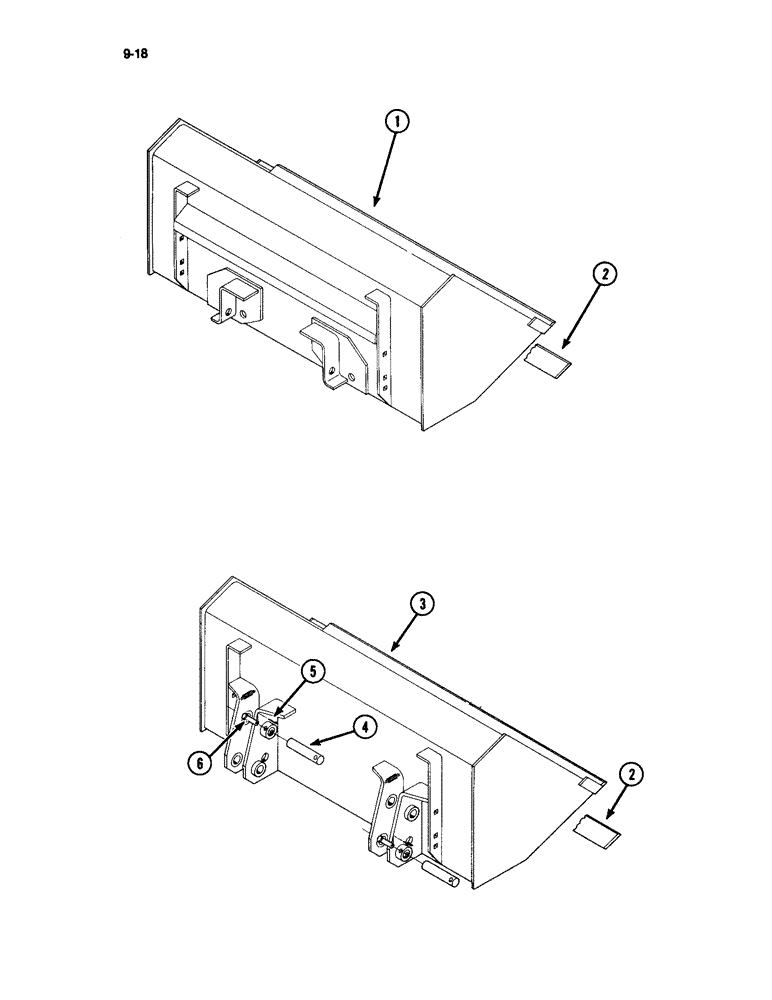

Запчасти Case IH 510 (9-18) - MATERIAL BUCKET, QUICK ATTACH TYPE (09) - CHASSIS/ATTACHMENTS

1

1985062C1

BUCKET ASSEMBLY - 96 inch (Machinery item), quick attach type

1шт.

1

1985062C2

BUCKET ASSEMBLY - 96 inch longer bottom (Machinery item), quick attach type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

2

1985077C1

EDGE

- cutting, 97-1/4 inch, quick attach type

1шт.

2

1540351C1

EDGE, CUTTING

EDGE - cutting, 3/4 x 4 x 97-1/2 inch, quick attach type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

2

1985077C1

EDGE

- cutting, 97-1/4 inch, standard type

1шт.

2

1540351C1

EDGE, CUTTING

EDGE - cutting, 3/4 x 4 x 97-1/2 inch, standard type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

3

1985074C1

BUCKET ASSEMBLY - 96 inch (Machinery item), standard type

1шт.

3

1985074C2

BUCKET ASSEMBLY - 96 inch longer bottom (Machinery item), standard type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

4

1985029C1

PIN,29mm OD x 187mm L

- pivot, 1-1/8 x 7-1/4 inch, standard type

4шт.

5

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch, Standard type

4шт.

6

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch, standard type

4шт.
