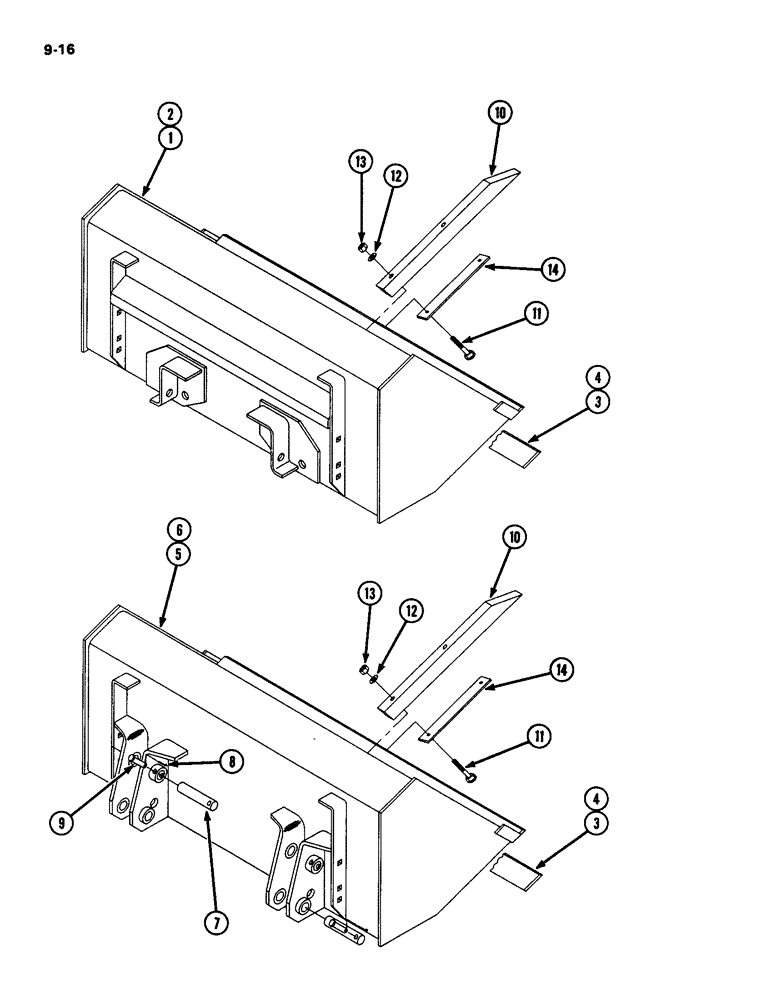

Запчасти Case IH 510 (9-16) - MATERIAL BUCKET, QUICK ATTACH TYPE (09) - CHASSIS/ATTACHMENTS

1

1985057C1

BUCKET ASSEMBLY - 72 inch (Machinery item), quick attach type

1шт.

1

1985057C2

BUCKET ASSEMBLY - 72 inch longer bottom (Machinery item), quick attach type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

2

1985058C1

BUCKET ASSEMBLY - 84 inch (Machinery item), quick attach type

1шт.

2

1985058C2

BUCKET ASSEMBLY - 84 inch longer bottom (Machinery item), quick attach type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

3

1985075C1

EDGE

- cutting, 73-1/4 inch, quick attach type

1шт.

3

1985301C2

BLADE

EDGE - cutting, 3/4 x 4 x 73-1/2 inch, quick attach type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

4

1985076C1

EDGE

- cutting, 85-1/4 inch, quick attach type

1шт.

4

1985302C2

BLADE

EDGE - cutting, 3/4 x 4 x 85-1/2 inch, quick attach type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

3

1985075C1

EDGE

- cutting, 73-1/4 inch, standard type

1шт.

3

1985301C2

BLADE

EDGE - cutting, 3/4 x 4 x 73-1/2 inch, standard type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

4

1985076C1

EDGE

- cutting, 85-1/4 inch, standard type

1шт.

4

1985302C2

BLADE

EDGE - cutting, 3/4 x 4 x 85-1/2 inch, standard type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

5

1985072C1

BUCKET ASSEMBLY - 72 inch (Machinery item), standard type

1шт.

5

1985072C2

BUCKET ASSEMBLY - 72 inch longer bottom (Machinery item), standard type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

6

1985073C1

BUCKET ASSEMBLY - 84 inch (Machinery item), standard type

1шт.

6

1985073C2

BUCKET ASSEMBLY - 84 inch longer bottom (Machinery item), standard type

1шт.

Bucket assemblies with longer bottom and 3/4 inch thick cutting edge.

1шт.

7

1985029C1

PIN,29mm OD x 187mm L

- pivot, 1-1/8 x 7-1/4 inch, standard type

4шт.

8

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch, Standard type

4шт.

9

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch, standard type

4шт.

10

T51043

TINE

- 72 inch bucket, quick attach and standard type

8шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Use without doubler bar Ref. 14), 72 in. bucket tines quick attach and standard type

16шт.

11

419-3648

PLOW BOLT,#3, 3/8" - 16 x 3", Gr 5

BOLT - round head square neck, 3/8 NC x 3 inch (Use with doubler bar, Ref. 14), 72 in. bucket tines quick attach and standard type

16шт.

12

492-11038

LOCK WASHER,3/8"

72 in. bucket tines quick attach and standard type 3/8"

16шт.

13

425-106

NUT,3/8"-16, Cl 5

72" bucket tines quick attach and standard type 3/8"-16, G5

16шт.

14

1540357C1

BAR

- doubler, 72 in. bucket tines quick attach and standard type

8шт.

10

T51043

TINE

- 84 inch bucket, quick attach and standard type

10шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Use without doubler bar Ref. 14), 72 in. bucket tines quick attach and standard type

20шт.

11

419-3648

PLOW BOLT,#3, 3/8" - 16 x 3", Gr 5

BOLT - round head square neck, 3/8 NC x 3 inch (Use with doubler bar, Ref. 14), 72 in. bucket tines quick attach and standard type

20шт.

12

492-11038

LOCK WASHER,3/8"

72 in. bucket tines quick attach and standard type 3/8"

20шт.

13

425-106

NUT,3/8"-16, Cl 5

72" bucket tines quick attach and standard type 3/8"-16, G5

20шт.

14

1540357C1

BAR

- doubler, 72 in. bucket tines quick attach and standard type

10шт.
