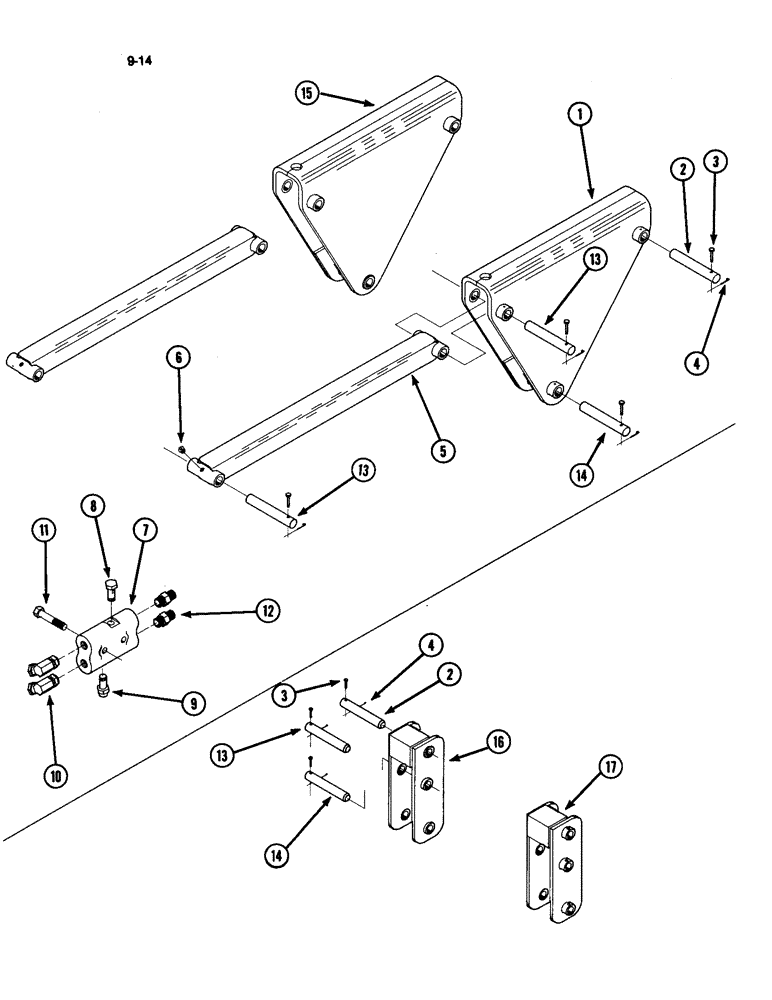

Запчасти Case IH 510 (9-14) - SELF LEVELING LINKAGE (09) - CHASSIS/ATTACHMENTS

1

1985015C1

ASSEMBLY

SELF LEVELING ASSEMBLY - right

1шт.

2

1985031C1

PIN

- pivot - 1-1/8 x 6-5/8 inch

2шт.

3

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis - 3/8 x 2-1/4 inch

8шт.

4

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

8шт.

5

1985011C1

LINK

BOX LINK - assembly

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

4шт.

T58169

VALVE

ASSEMBLY - self leveling, Includes: Ref. 7 - 9

1шт.

Uses P/N 220821A1 Seal Kit, D54590 Plug and 1540361C1 Relief

1шт.

7

T58170

BODY

VALVE - crossover body

1шт.

8

129514A1

PLUG

ASSEMBLY - no relief

1шт.

9

T58171

PLUG

RELIEF - 1900 psi

1шт.

10

1985059C1

FITTING

ELBOW - 45 degree swivel, 3/4 JIC x 7/8 O-ring

2шт.

11

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

13

1985029C1

PIN,29mm OD x 187mm L

- pivot - 1-1/8 x 7-1/4 inch

4шт.

14

1985030C1

PIN

- pivot - 1-1/8 x 6-7/8 inch

2шт.

15

1985016C1

ASSEMBLY

SELF LEVELING ASSEMBLY - left

1шт.

2

1985031C1

PIN

- pivot - 1-1/8 x 6-5/8 inch

2шт.

3

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis - 3/8 x 2-1/4 inch

6шт.

4

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

6шт.

13

1985029C1

PIN,29mm OD x 187mm L

- pivot - 1-1/8 x 7-1/4 inch

2шт.

14

1985030C1

PIN

- pivot - 1-1/8 x 6-7/8 inch

2шт.

16

1985042C1

LOWER LINK

LINK ASSEMBLY - left

1шт.

17

1985041C1

LOWER LINK

LINK ASSEMBLY - right

1шт.

16

1985042C1

LOWER LINK

LINK ASSEMBLY - left, Serial Range: -CJA0004610

1шт.

16

1540352C1

LINK

ASSEMBLY - left, Start Serial: CJA0004610

1шт.

17

1985041C1

LOWER LINK

LINK ASSEMBLY - right, Serial Range: -CJA0004610

1шт.

17

1540353C1

LINK

ASSEMBLY - right, Start Serial: CJA0004610

1шт.
