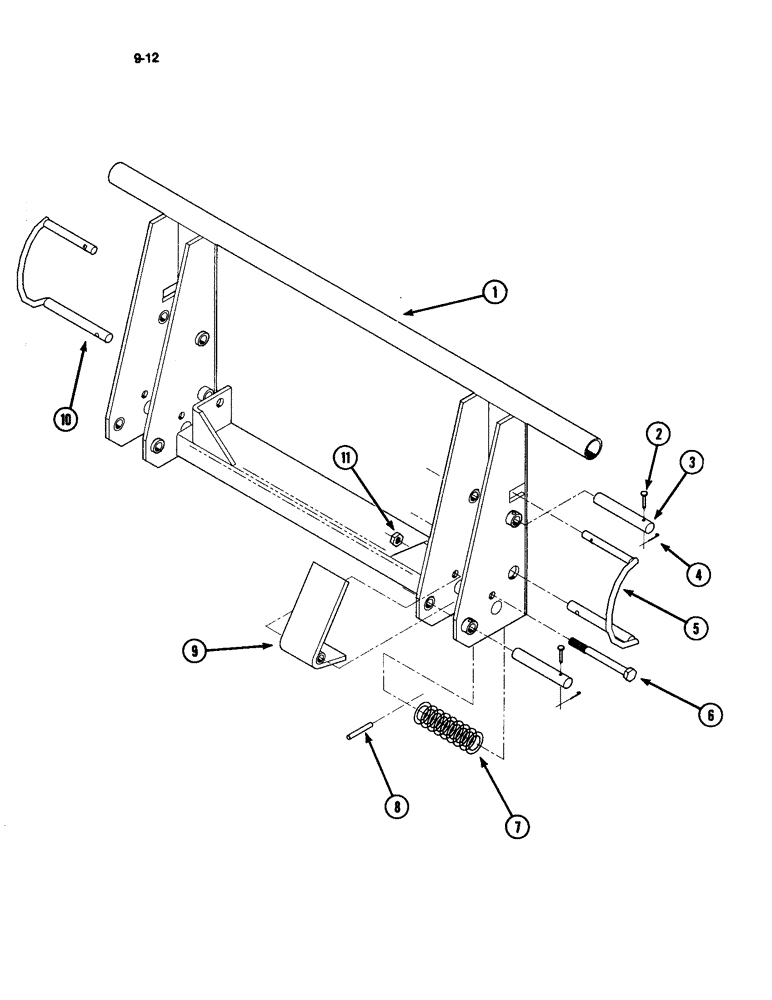

Запчасти Case IH 510 (9-12) - QUICK ATTACH ADAPTER (09) - CHASSIS/ATTACHMENTS

1

1985044C1

ASSEMBLY

QUICK ATTACH ASSEMBLY

1шт.

2

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch

4шт.

3

1985029C1

PIN,29mm OD x 187mm L

- pivot, 1-1/8 x 7-1/4 inch

4шт.

4

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

4шт.

5

1985046C1

HANDLE

- right

1шт.

6

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

- hex, 3/8 NC x 6 inch

2шт.

7

1978830C1

SPRING

2шт.

8

38-12428

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

2шт.

9

1985045C1

CAP

- protection

2шт.

10

1985047C1

HANDLE

- left

1шт.

11

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8 inch NC

2шт.
