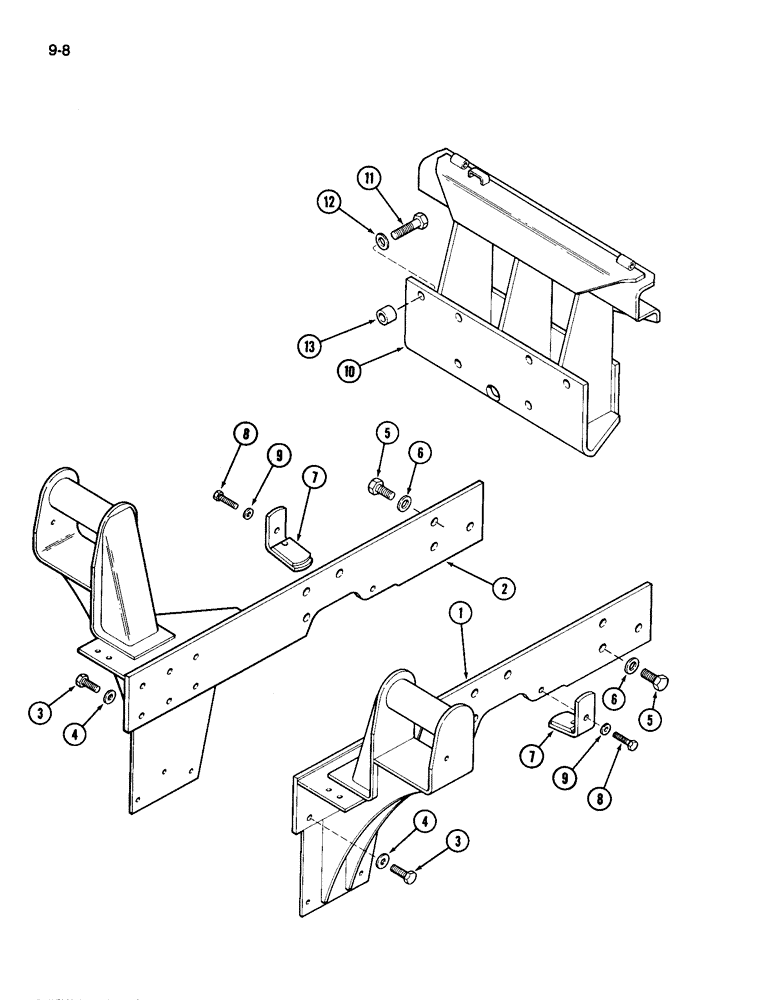

Запчасти Case IH 510 (9-08) - MOUNTING FRAME AND SUPPORT, TRACTORS WITHOUT FRONT HITCH 5110 AND 5120 (09) - CHASSIS/ATTACHMENTS

1983795C1

MOUNTING ASSEMBLY - loader (Machinery Item), Includes: Ref. 1 - 13

1шт.

1

1263707C1

FRAME ASSY

FRAME - rear, right

1шт.

2

1263708C1

FRAME ASSY

FRAME - rear, left

1шт.

3

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

12шт.

If a grade 10 bolt is needed try P/N 628-16045.

1шт.

4

589068R1

WASHER

- flat, 21/32 x 1-1/4 x 3/32 inch

12шт.

5

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

BOLT - hex, 20 mm - 2.5 x 45 mm, Grade 10.9

12шт.

6

131017

WASHER

- flat, 13/16 x 1-1/2 x 7/64 inch

12шт.

7

1263715C1

SUPPORT ASSY.

SUPPORT - axle stop

2шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 x 50 mm, Grade 10.9

2шт.

9

495-81159

WASHER,33/64" x 7/8" x .180"

- flat, 33/64 x 7/8 x 7/32 inch

2шт.

10

1980500C1

BRACKET

- front mount

1шт.

11

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

BOLT - hex, 20 mm - 2.5 x 45 mm, Grade 10.9 (Use with front hitch bolster)

6шт.

11

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 mm - 2.5 x 80 mm, Grade 10.9 (Use with non-front hitch bolster)

6шт.

12

NLS

NO LONGER SERVICED

- flat, 13/16 x 1-1/2 x 7/64 inch

6шт.

13

1980663C1

SPACER

- front mount

6шт.
