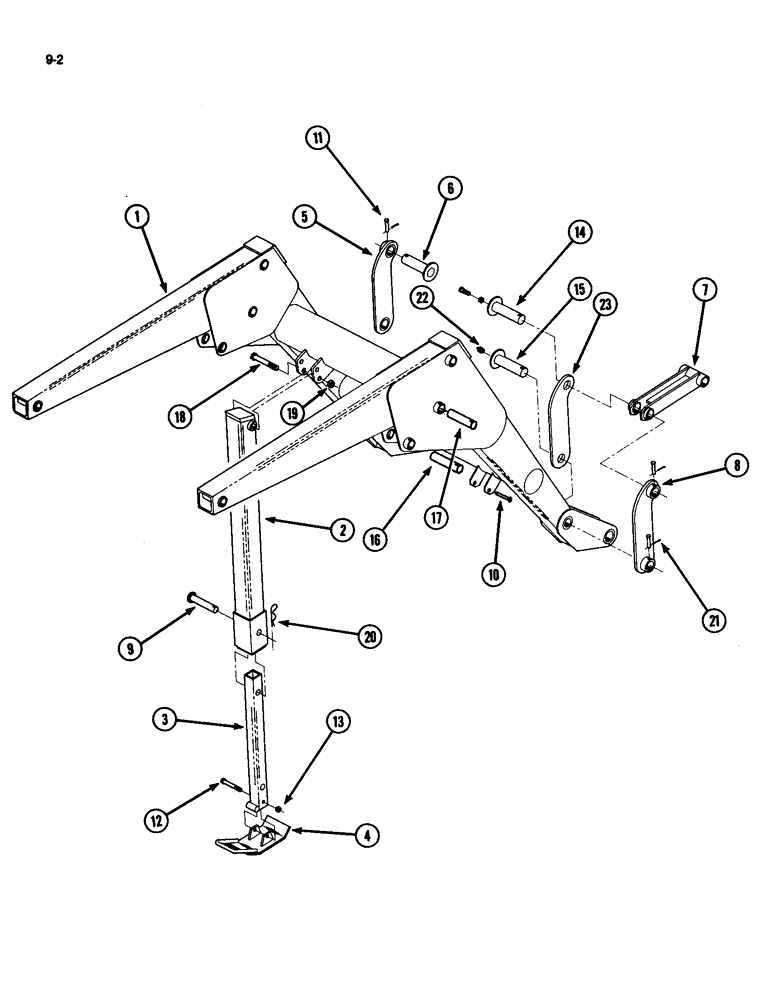

Запчасти Case IH 510 (9-02) - BOOM AND PARKING LEG (09) - CHASSIS/ATTACHMENTS

1

1985013C1

FRAME

BOOM - loader

1шт.

2

1985010C1

STAND

ASSEMBLY - parking

2шт.

3

1985009C1

SUPPORT TUBE

TUBE - lower, parking stand

2шт.

4

1985008C1

FOOT

- parking stand

2шт.

5

1985039C1

LINK

ASSEMBLY - left

1шт.

6

1985036C1

PIN

- headed, 1-1/8 x 6-1/4 inch

1шт.

7

1985037C1

LINK

ASSEMBLY - front

2шт.

8

1985038C1

LINK

ASSEMBLY - right

1шт.

9

22074R1

HEADED PIN,5/8" x 4 1/2"

PIN - clevis, 5/8 x 4-1/2 inch

2шт.

10

26965R1

HEADED PIN,5/8" x 4"

PIN - clevis, 5/8 x 4 inch

2шт.

11

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch

6шт.

12

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

13

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

2шт.

14

1985035C1

PIN

- 1-1/8 x 6-1/4 inch

1шт.

15

1985034C1

PIN

- 1-1/8 x 6-1/4 inch

2шт.

16

1985032C1

PIN

- 1-5/16 x 5-9/16 inch

2шт.

17

1985029C1

PIN,29mm OD x 187mm L

- 1-1/8 x 6-7/8 inch

2шт.

18

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

2шт.

19

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, 3/4 NC inch

2шт.

20

T54573

PIN

- cotter, hair

2шт.

21

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 inch

6шт.

22

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

2шт.

23

1985040C1

BAR

LINK - bar

2шт.
