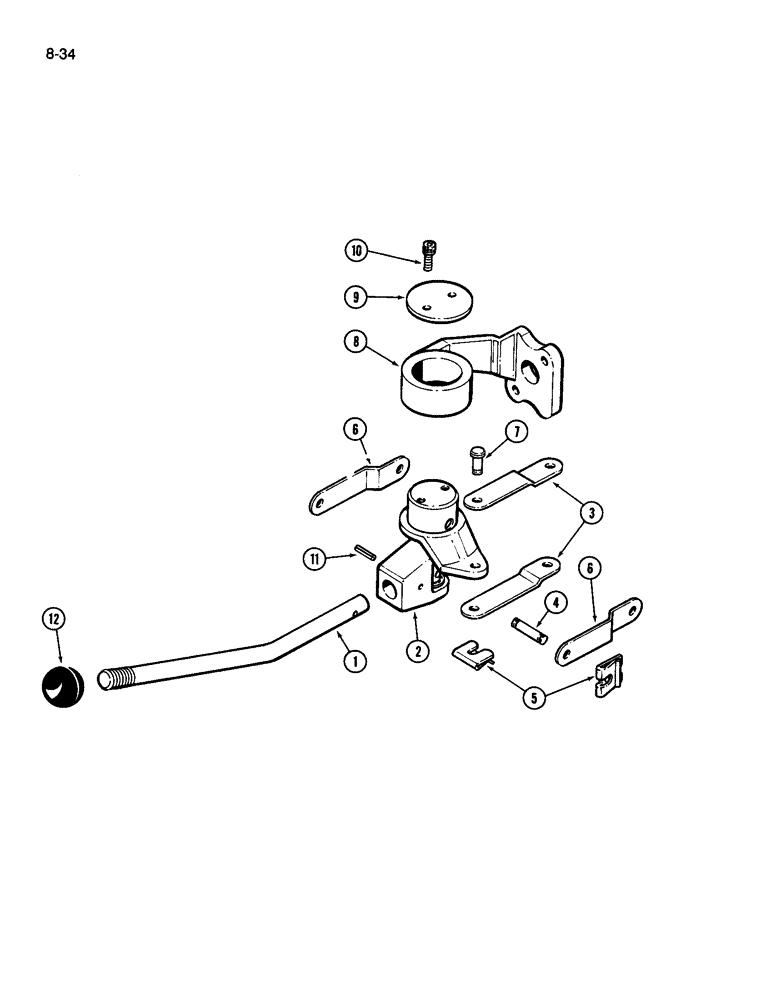

Запчасти Case IH 510 (8-34) - HYDRAULIC VALVE CONTROL ASSEMBLY (08) - HYDRAULICS

1980799C1

CONTROL

ASSEMBLY - hydraulic valve, Includes: Ref. 1 - 12

1шт.

1

1344845C1

HANDLE

- valve control

1шт.

2

1344846C1

PIVOT

- valve control handle

1шт.

3

1344822C1

LINK

- valve control

2шт.

4

1344820C1

PIN

- pivot

1шт.

5

1344819C1

RETAINER

- pivot pin

3шт.

6

1344823C1

LINK

- control valve

2шт.

7

1344818C1

PIN

- headed

1шт.

8

1344817C1

BRACKET

- control handle

1шт.

9

1344821C1

PLATE

- clamp

1шт.

10

187828

SCREW

- socket head, No. 10 x 1/2 inch

2шт.

11

38-11214

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

12

53717DA

BUTTON

KNOB - control lever

1шт.
