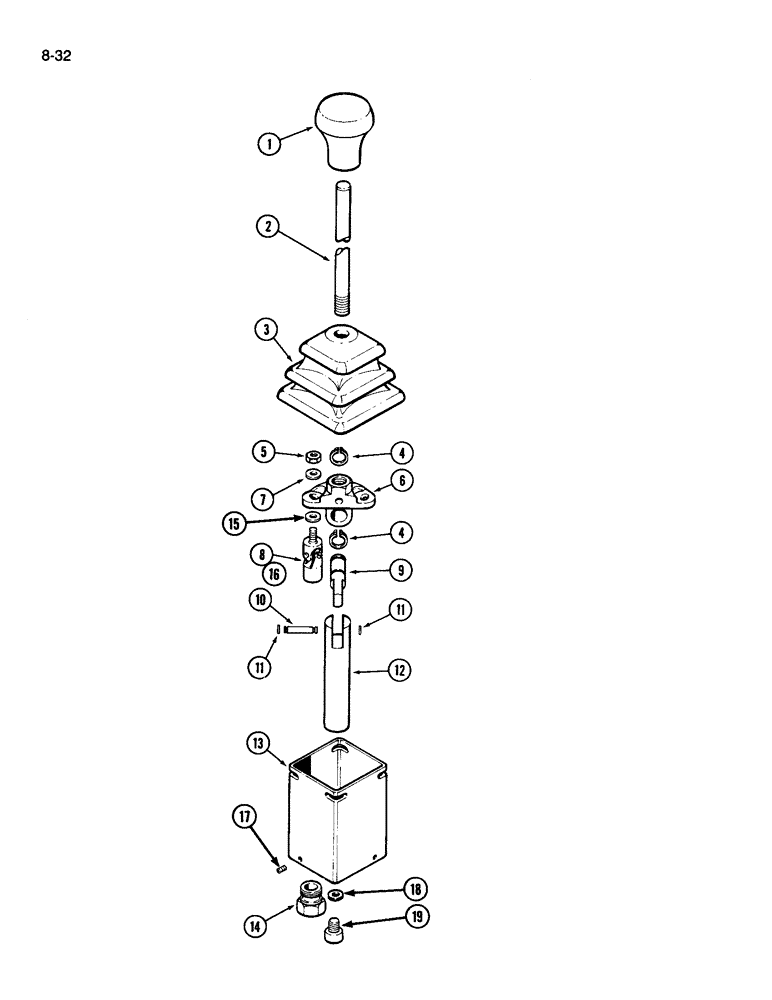

Запчасти Case IH 510 (8-32) - HYDRAULIC VALVE CONTROL ASSEMBLY (08) - HYDRAULICS

1980795C1

CONTROL

VALVE ASSEMBLY - lever control, Includes: Ref. 1 - 19

1шт.

1

53717DA

BUTTON

KNOB - mono control lever

1шт.

2

1344806C1

LEVER

- control valve

1шт.

3

1344804C1

BOOT

1шт.

4

1344814C1

RING

- retaining

2шт.

5

825-1406

NUT,M6, Cl 8

2шт.

6

1344812C1

PLATE

- mounting

1шт.

7

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, hardened, 7 x 13 x 2 mm

4шт.

8

1344810C1

JOINT

- ball

2шт.

9

1344808C1

AXLE

- valve

1шт.

10

1344805C1

PIN

1шт.

11

1344813C1

RING

- retaining

2шт.

12

1344807C1

SUPPORT

- valve axle

1шт.

13

1344811C1

HOUSING

- control device

1шт.

14

1344809C1

NUT

- adjusting

2шт.

15

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

16

1540118C1

SLEEVE

- rubber

2шт.

17

878-50610

SET SCREW,Hex Skt, M6 x 10mm, Dog Pt

SCREW - locking

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

864-10035

HEX SOC SCREW,M10 x 35mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 35 mm

1шт.
