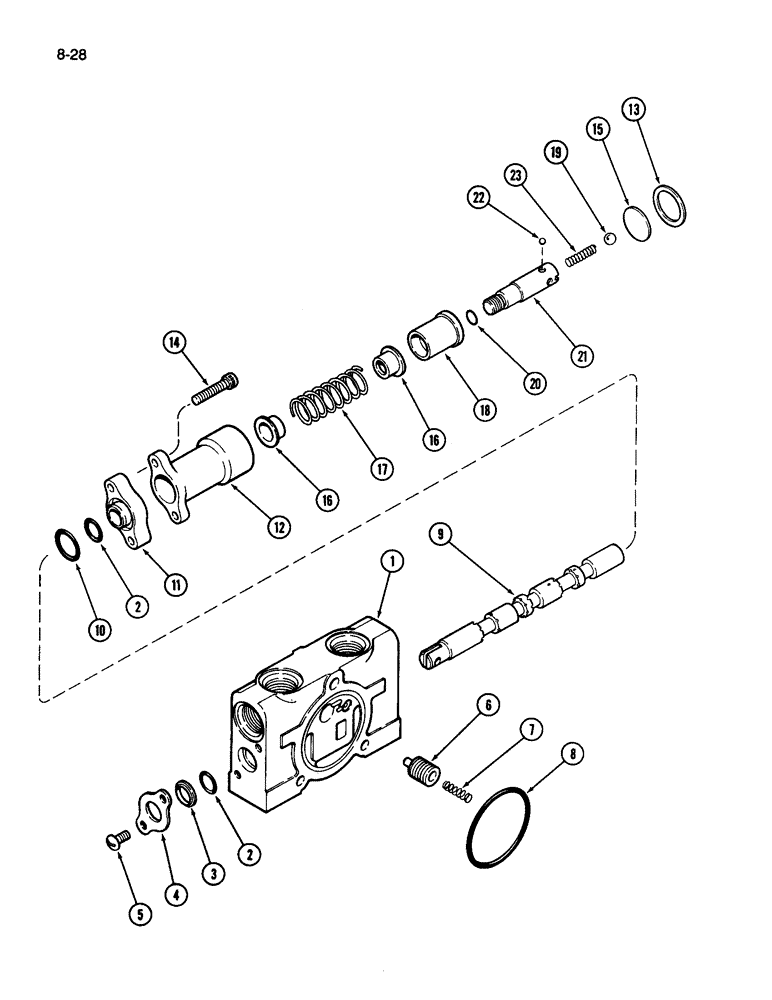

Запчасти Case IH 510 (8-28) - CONTROL VALVE, DETENT SPOOL SECTION (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic (Continued), Includes: Ref. 1 - 23

1шт.

1344743C1

SPOOL

BODY ASSEMBLY - spool section, detent

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - spool section (Order 1344743C1)

1шт.

2

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

- detent spool

2шт.

3

S111870

OIL SCRAPER RING

SEAL - wiper

1шт.

4

S111865

PLATE

- seal

1шт.

5

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

BOLT - pan head, 1/4 x 3/8 inch

2шт.

6

1344738C1

PISTON

- compensator

1шт.

7

1344737C1

SPRING

- compression

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order 1344743C1)

1шт.

10

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

11

1344720C1

SPACER

CAP - spool spacer

1шт.

12

1344724C1

CAP

- spool detent

1шт.

13

1344715C1

RING

- retaining

1шт.

14

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - socket head, 1/4 x 1-1/4 inch

2шт.

15

1344719C1

PLATE

- spacer

1шт.

16

1344732C1

SEAT

- spring

2шт.

17

S111867

SPRING

- plunger

1шт.

18

1344721C1

SLEEVE

- detent

1шт.

19

23206R1

BALL,5/16" Dia, Stainless

1шт.

20

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

21

1344730C1

END

PIN - spool end detent

1шт.

22

23204R1

BALL,7/32" Dia, Stainless

4шт.

23

1344718C1

SPRING

- detent

1шт.
