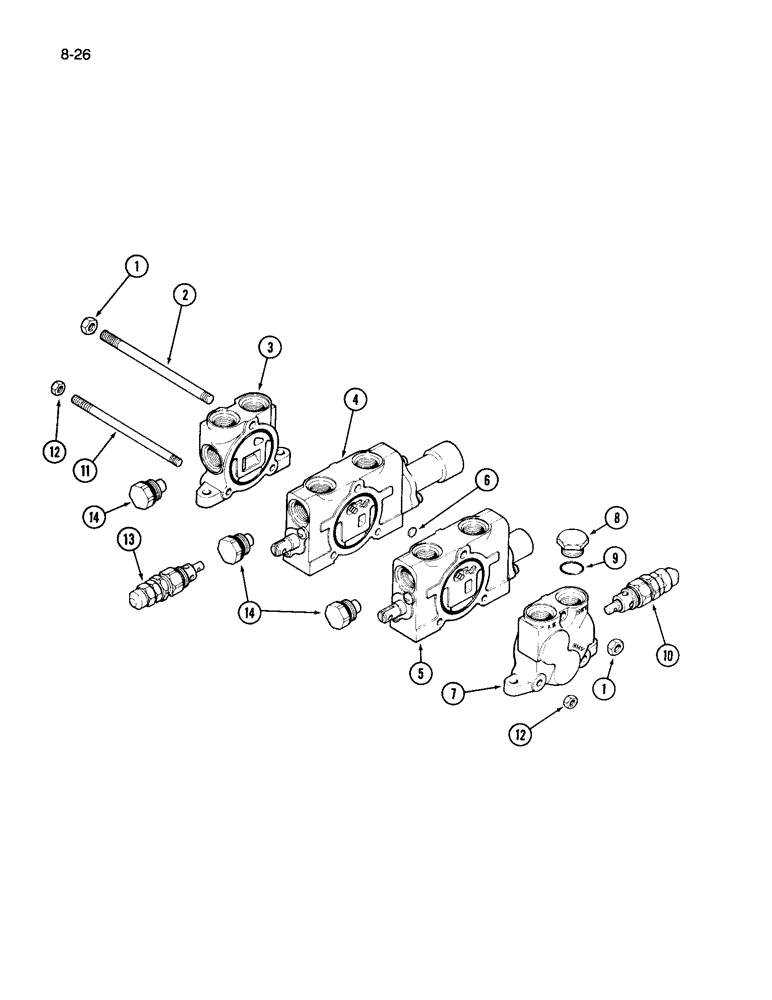

Запчасти Case IH 510 (8-26) - CONTROL VALVE (08) - HYDRAULICS

1980798C1

VALVE

ASSEMBLY - hydraulic, For detent section See Figure 8-28. For spcol section see Figure 8-30., Includes: Ref. 1 - 14

1шт.

1980840C1

VALVE

control, 2 spool, Replaces: 1980798C1

1шт.

1

329-116

NUT,3/8"-24, G8

2шт.

2

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

BOLT - tie rod, 3/8 x 6-1/8 inch

1шт.

3

1344741C1

COVER

BODY - inlet section

1шт.

4

REF

INSTRUCTION

BODY ASSEMBLY - spool section, detent (See Figure 8-28)

1шт.

5

REF

INSTRUCTION

BODY ASSEMBLY - spool section (See Figure 8-30)

1шт.

6

1344736C1

PLATE

- shuttle

1шт.

7

1344744C1

OUTLET

BODY - outlet section

1шт.

8

86512512

PLUG,7/8" - 14 ORB

Assy, 5/8 tube, Incl. Ref. 9 Hex Hd, 7/8"-14 ORB

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

1344733C1

VALVE

ASSEMBLY - relief, 2500 PSI

1шт.

The replacement O-ring for the Husco Circuit relief valves is P/N 238-6012

1шт.

11

1344725C1

TIE-ROD,5/16" - 18 x 6"

BOLT - tie rod, 5/16 x 6 inch

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

13

1344734C1

VALVE

ASSEMBLY - relief, 3000 PSI

1шт.

14

1344731C1

PLUG

- shut off

1шт.
