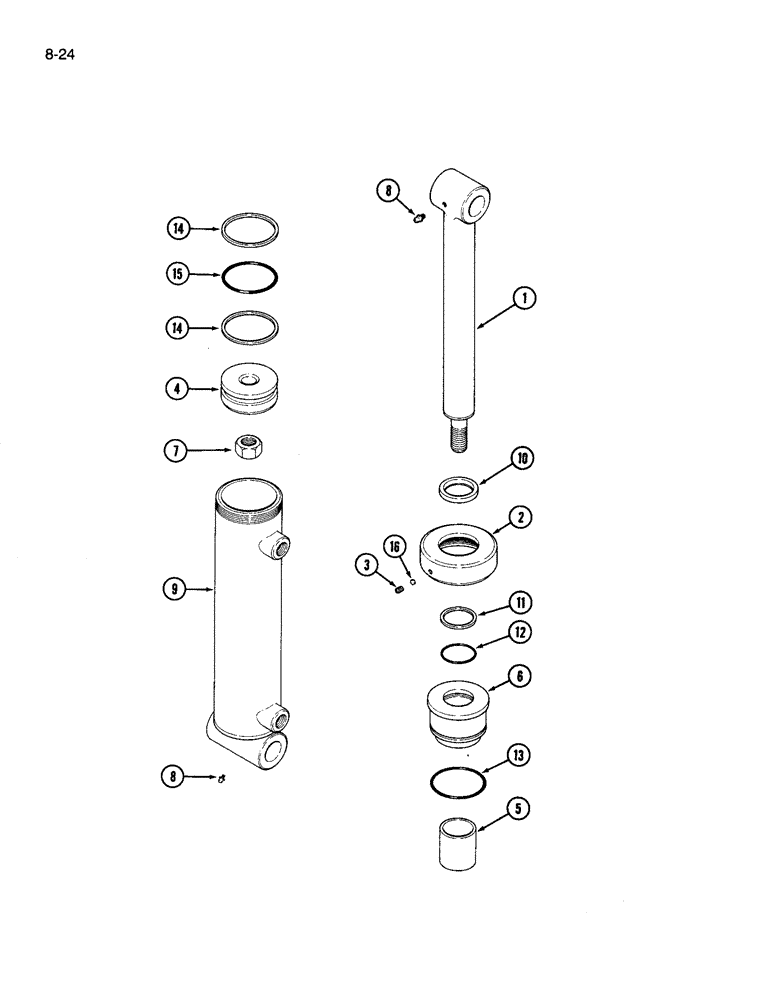

Запчасти Case IH 510 (8-24) - GRAPPLE CYLINDER (08) - HYDRAULICS

T57744

CYLINDER

ASSEMBLY - hydraulic, 2-1/2 inch, Includes: Ref. 1 - 9

1шт.

1

T57745

ROD

- piston

1шт.

2

T57599

CAP ASSY.

CAP - head, cylinder

1шт.

3

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket, 1/4 NC x 1/4 inch

1шт.

4

B17273

PISTON

- cylinder

1шт.

5

T58030

SPACER

- cylinder

1шт.

6

T50088

HEAD

- cylinder

1шт.

7

129-128

NUT,3/4"-16, G5

- hex, 3/4 inch NF

1шт.

8

126098

FITTING

- grease, straight

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

T51786

SEAL KIT

KIT - seal, Includes: Ref. 10 - 16

1шт.

10

A41785

WIPER SEAL

WIPER - rod

1шт.

11

388969R1

BACK-UP RING

SEAL - backup

1шт.

12

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Gland -222, 90 Duro, 1.484" ID x .139" Thk

1шт.

13

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

Cylinder -228, 90 Duro, 2.234" ID x .139" Thk

1шт.

14

378733R1

BACK-UP RING

SEAL - backup

2шт.

15

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

- piston

1шт.

16

T55068

PLUG

- nylon

1шт.
