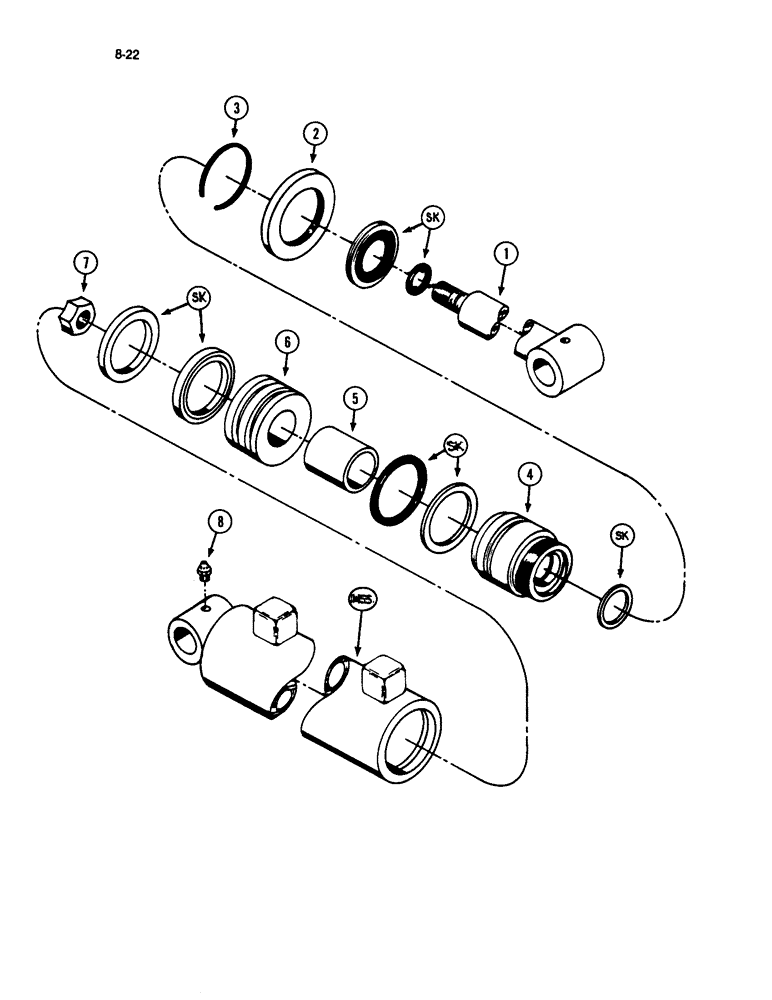

Запчасти Case IH 510 (8-22) - BOOM CYLINDER (08) - HYDRAULICS

1985027C1

CYLINDER

ASSEMBLY - lift, 3-1/2 inch, Includes: Ref. 1 - 7

2шт.

1

1985053C1

ROD

- cylinder

1шт.

2

1985052C1

NUT

- retainer

1шт.

3

1985051C1

RING

retainer

1шт.

4

1985050C1

HEAD

- cylinder

1шт.

5

T58155

SPACER

1шт.

6

1985049C1

PISTON

PISTCN - cylinder

1шт.

7

1978775C1

NUT

- piston

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

4шт.

sk

1985054C1

SEAL KIT

- seal (Includes all Refs. with SK)

1шт.

nss

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.
