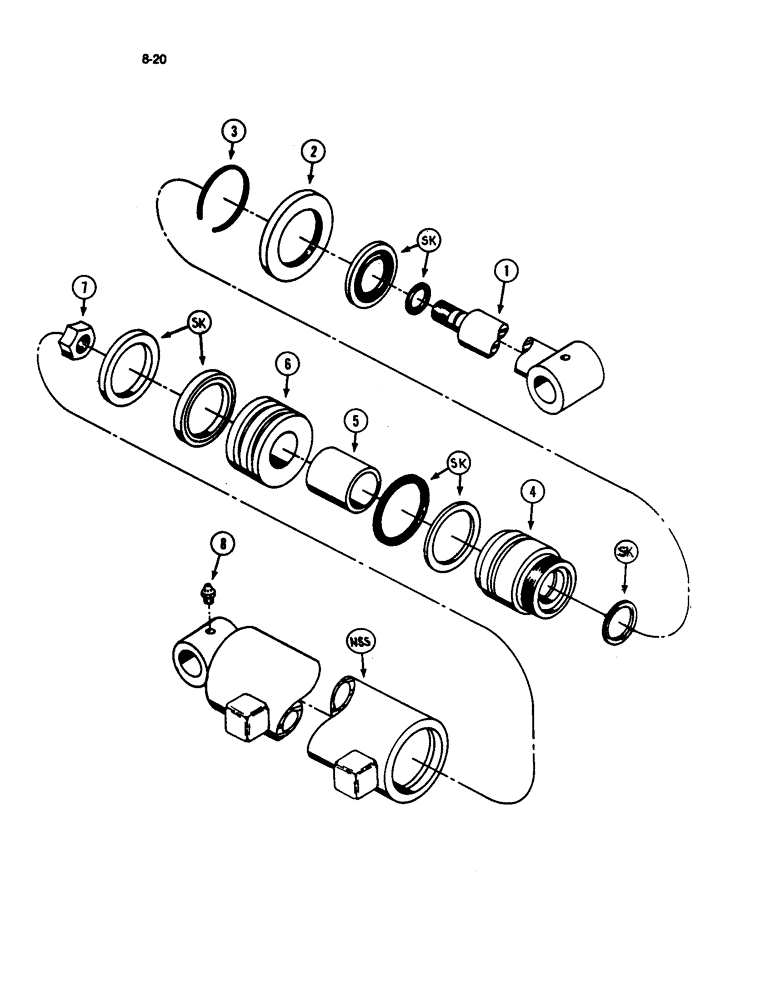

Запчасти Case IH 510 (8-20) - BUCKET CYLINDER, FOR LOADERS WITH SERIAL NUMBER CJA0004610 AND AFTER (08) - HYDRAULICS

1985028C1

CYLINDER

CYLINDER ASSEMBLY - 3 inch, Includes: Ref. 1 - 7

2шт.

1540358C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 inch, Includes: Ref. 1 - 7, Serial Range: CJA0004610-AFTER

2шт.

The coating on the Cylinder Head (Gland) can flake off and get under the Rod Seal causing external leakage.This may occur on cylinders with a manufacturing date code bebetween 31-92-1 through 15-94-1 the date code is stamped into the outside of the cylinder tube at the gland end. Leakage caused by this problem will normally occur early in the life of the loader. See Bulletin NMH SB 00196. Kit is P/N 24389A1.

1шт.

1

1985048C1

ROD

ROD - assembly

1шт.

1

1540359C1

ROD ASSY.

ROD - assembly

1шт.

The coating on the Cylinder Head (Gland) can flake off and get under the Rod Seal causing external leakage.This may occur on cylinders with a manufacturing date code bebetween 31-92-1 through 15-94-1 the date code is stamped into the outside of the cylinder tube at the gland end. Leakage caused by this problem will normally occur early in the life of the loader. See Bulletin NMH SB 00196. Kit is P/N 24389A1.

1шт.

2

1978771C1

NUT

- retainer

1шт.

3

1978777C1

RING

- retainer

1шт.

4

1978772C1

HEAD

- cylinder

1шт.

5

1978773C1

SPACER

1шт.

6

1978774C1

PISTON

- cylinder

1шт.

7

1978775C1

NUT

- piston

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

4шт.

sk

1978776C1

SEAL KIT

KIT - seal (Includes all Refs. with SK)

1шт.

nss

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.
