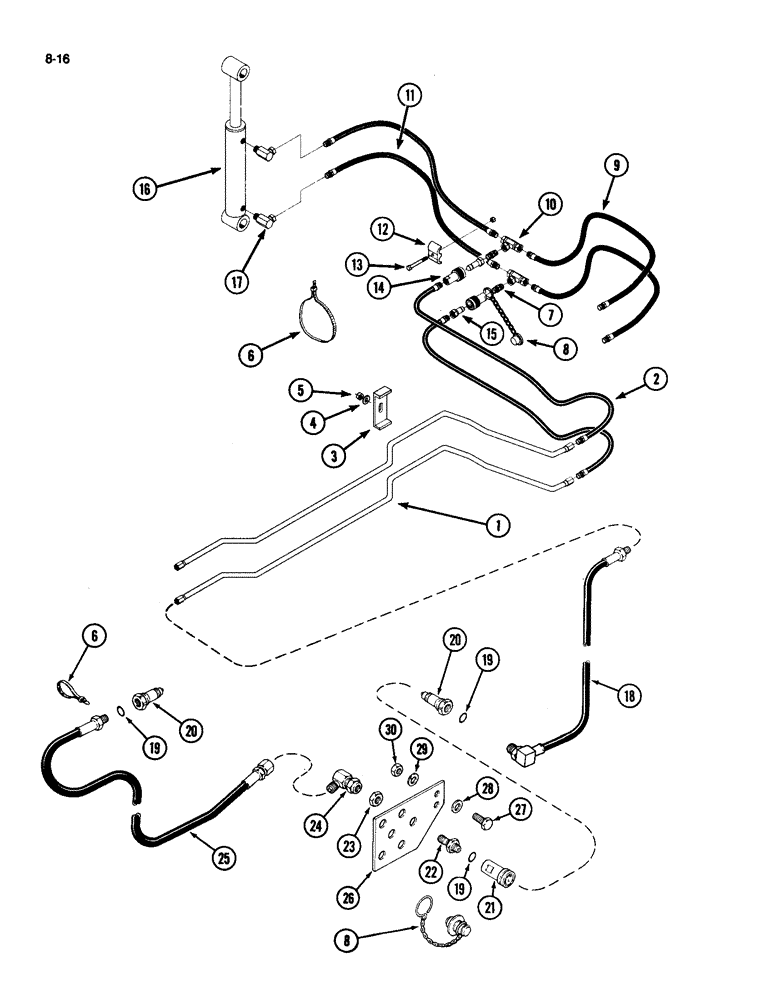

Запчасти Case IH 510 (8-16) - GRAPPLE HYDRAULICS (08) - HYDRAULICS

1

1985006C1

HYD TUBE,0.5" OD

TUBE - grapple, raise-lower

2шт.

2

1985067C1

HOSE

- grapple, raise-lower, 3/8 x 72 inch

2шт.

3

1985012C1

CLAMP

CLIP - tube

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

131-217

LOCK NUT

NUT - nylon lock, 3/8 inch NC

4шт.

6

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - nylon cable

6шт.

7

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - straight, 1/2 PT x 1-7/8 inch

2шт.

8

T57615

PLUG

- dust coupling

4шт.

9

1985065C1

HOSE

- hydraulic, 3/8 x 37-1/2 inch

2шт.

10

218-1602

UNION

TEE - union, 1/2-20 female

2шт.

11

1985066C1

HOSE

- hydraulic, 3/8 x 32-1/2 inch

2шт.

12

1985061C1

INSERT

- rubber

2шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

H49718

COUPLING

COUPLER - female

2шт.

15

H49726

PUSH-PULL COUPLING

COUPLER - male

2шт.

16

REF

INSTRUCTION

CYLINDER - grapple (See Figure 8-25)

2шт.

17

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

- 90 deg, 3/4-16 adj O-rin x 1/2 inch swivel str pipe

4шт.

18

1985055C1

HOSE

- hydraulic 3/8-60 - 90 degree

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

20

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing male, 7/8-14 thread

4шт.

21

1272400C1

COUPLING

COUPLER - female

2шт.

22

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

23

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

24

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

2шт.

25

1978698C1

HOSE

- hydraulic, 3/8 x 130 inch

2шт.

26

1980539C1

PLATE

- coupler mounting

1шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

1985078C1

KIT

- ooupler tag, color coded

1шт.
