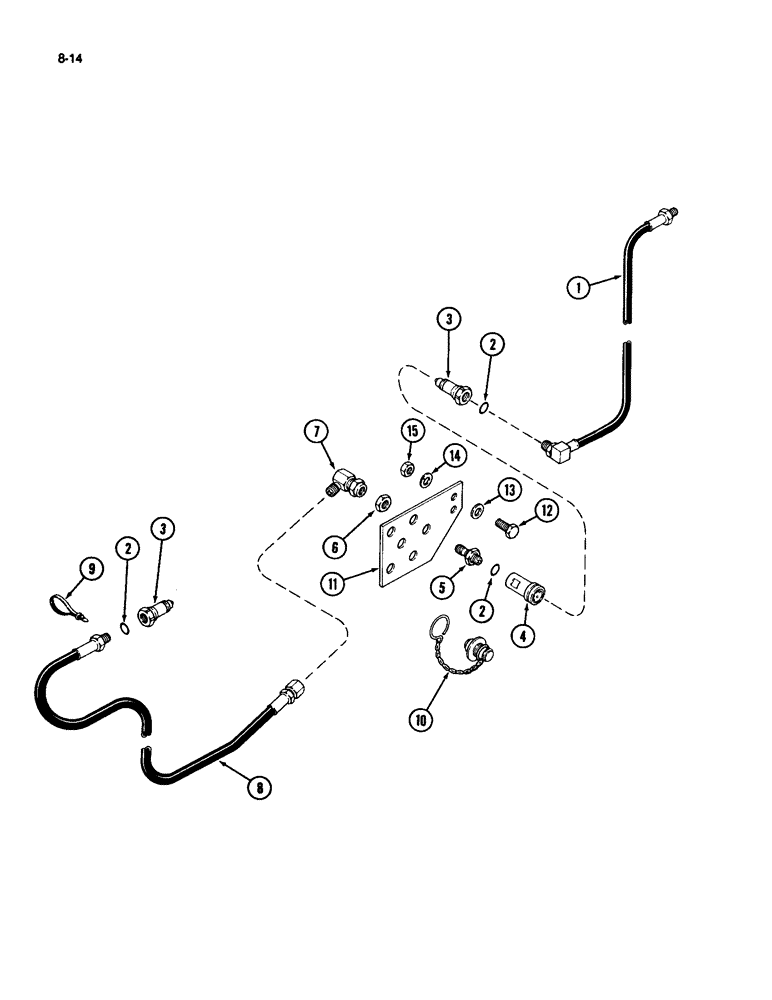

Запчасти Case IH 510 (8-14) - MID-MOUNT HYDRAULICS, ATTACHES TO REAR AUXILIARY VALVE (08) - HYDRAULICS

1

1985055C1

HOSE

- hydraulic, 3/8 x 60 inch

4шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

12шт.

3

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread

8шт.

4

1272400C1

COUPLING

COUPLER ASSEMBLY - hydraulic

4шт.

5

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

6

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

4шт.

8

1985056C1

HOSE

- hydraulic, 3/8 x 130 inch

4шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - cable lock, 28-1/4 inch

4шт.

10

T57615

PLUG

ASSEMBLY - coupling dust

4шт.

11

1980539C1

PLATE

- coupler mounting

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

1985078C1

KIT

- coupler tag, color coded

4шт.
