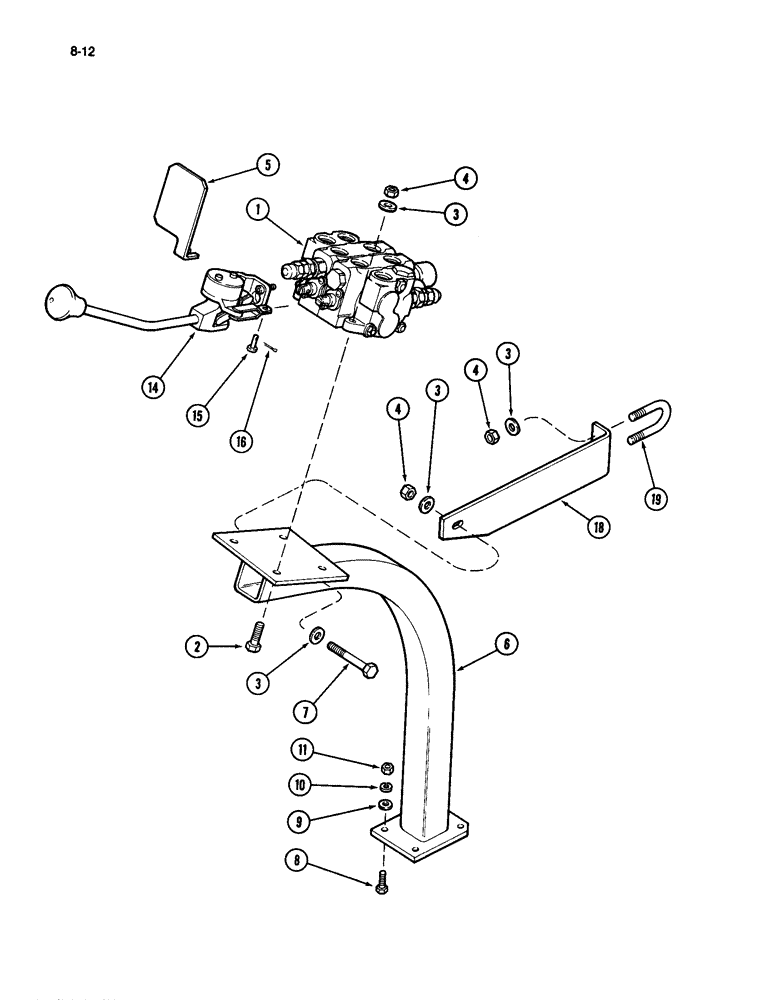

Запчасти Case IH 510 (8-12) - HYDRAULIC VALVE MOUNTING, TRACTORS WITH ROPS EXTERNAL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic (See Figure 8-27)

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

7шт.

4

425-106

NUT,3/8"-16, Cl 5

7шт.

5

1329586C1

SUPPORT

- product graphic mounting

1шт.

6

1980808C1

SUPPORT

- valve mounting

1шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

8

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

9

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 23/32 x 3/64 inch

4шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

14

1980799C1

CONTROL

ASSEMBLY - hydraulic valve

1шт.

15

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis

2шт.

16

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

18

1980807C1

BRACE

- hydraulic valve mounting

1шт.

19

137314C2

U-BOLT,3/8" - 16 x 38.10mm W x 46mm L

- valve mounting brace

1шт.
