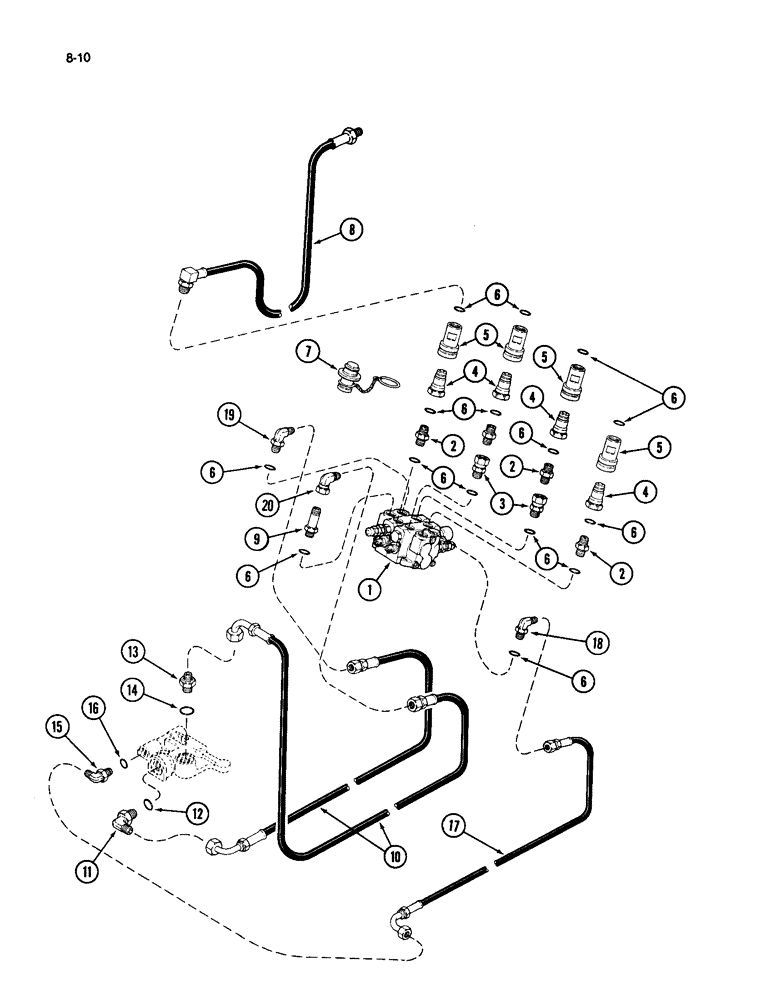

Запчасти Case IH 510 (8-10) - VALVE HYDRAULICS, TRACTORS WITH ROPS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - hydraulic (See Figure 8-27)
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, 7/8-14 inch flare x O-ring boss
4шт.
3
485313R1
FITTING
CONNECTOR - swivel, 5/8 inch tube
2шт.
5
1272400C1
COUPLING
COUPLER ASSEMBLY - hydraulic
4шт.
6
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
15шт.
7
T57615
PLUG
ASSEMBLY - coupling dust
4шт.
8
1985055C1
HOSE
- hydraulic, 3/8 x 60 inch
4шт.
9
218-5032
HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male ORB
ADAPTER - straight, 7/8-14 inch flare x O-ring boss
1шт.
10
1344851C1
HOSE
- hydraulic, 1/2 x 122 inch
2шт.
11
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
- 90 degree, adjustable
1шт.
12
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 59/64 ID x 7/8 inch
1шт.
13
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
REDUCER - 37 degree, 7/8 x 1-1/16 boss end
1шт.
14
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 ID x 1/64 inch
1шт.
15
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 90 degree, adj, 9/16-18 inch flare x O-ring boss
1шт.
17
1344852C1
HOSE
- hydraulic, 1/4 x 122 inch
1шт.
18
218-5281
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
- 90 deg adj, 3/8-14 flare-x 1/2-20 inch O-ring
1шт.
19
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread
1шт.
20
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
- 90 degree, 7/8-14 inch flare x swivel flare
1шт.
1985078C1
KIT
- coupler tag, color coded
2шт.
16
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 21
