Запчасти Case IH 2455 (8-10) - MATERIAL BUCKET, 96 INCH

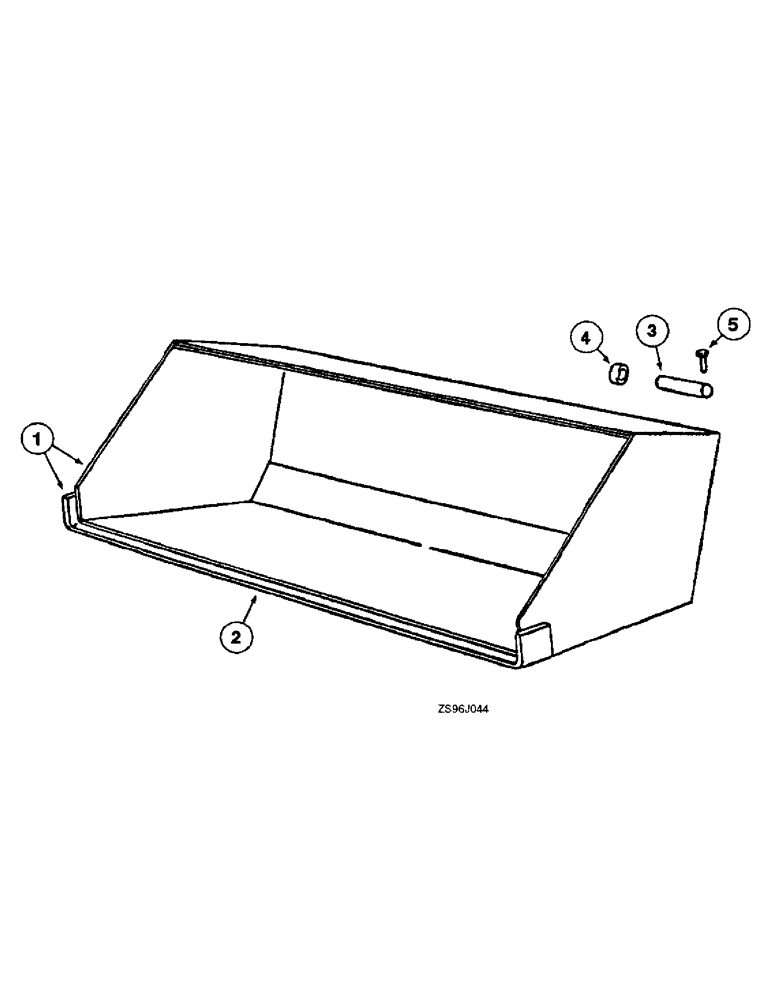

Схема запчастей Case IH 2455 - (8-10) - MATERIAL BUCKET, 96 INCH
2
4
3
5
1

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BUCKET - 96 inch, loose material, serviced only as a machine attachment, Includes: Ref. 2

1шт.

2

T53865

EDGE

BLADE - 96 inch, bucket, to be welded (replaces 851036C1)

1шт.

3

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

4

378555R1

SPACER

BUSHING - spacer, for bucket cylinder pins

4шт.

5

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces 103372) 3/32" x 1/2"

4шт.

Выбрано товаров: 6
