Запчасти Case IH 2455 (8-04) - FRAME AND BRACKETS

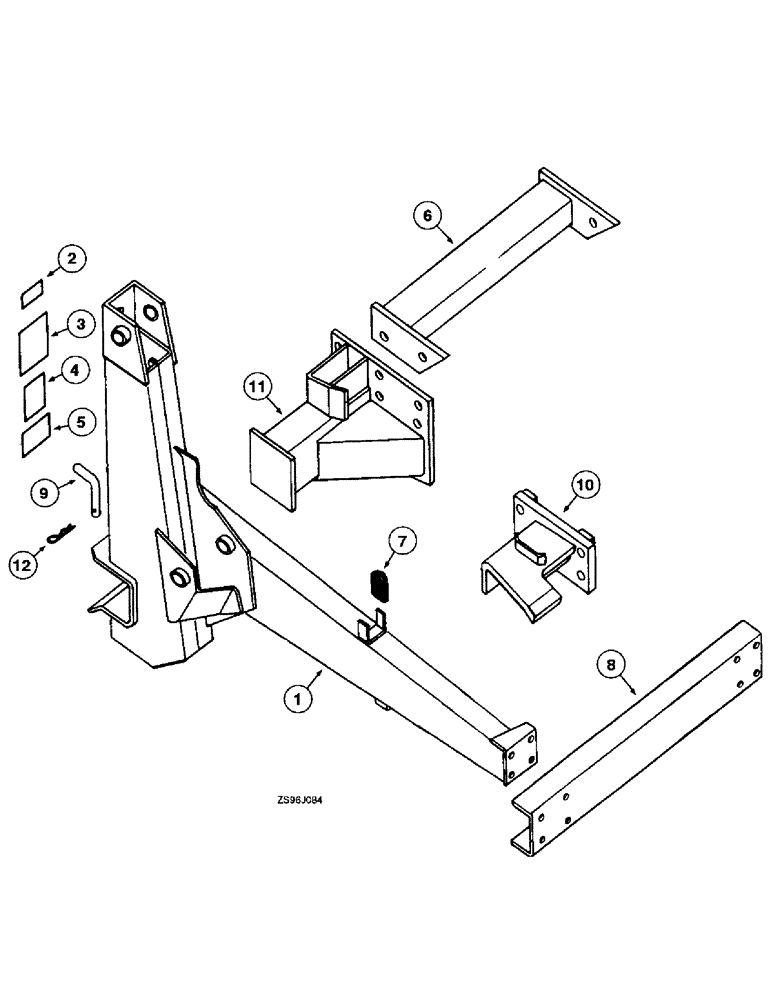

Схема запчастей Case IH 2455 - (8-04) - FRAME AND BRACKETS
12
8
1
3
9
4
10
7
11
5
2
6

Артикул

Название

Примечание

Количество

1

853389C1

FRAME

ASSEMBLY - sub RH, 2355 loader, Includes: Ref. 2 - 5

1шт.

1

853373C2

FRAME

ASSEMBLY - sub RH, 2455 loader, no longer available, Includes: Ref. 2 - 5

1шт.

1

853604C92

FRAME ASSY

FRAME ASSEMBLY - sub LH, 2355 loader, with decals

1шт.

1

853605C92

FRAME ASSY

FRAME ASSEMBLY - sub LH, 2455 loader, with decals

1шт.

2

851836C1

PRODUCT GRAPHIC

DECAL - important, 2455, dealer installed

1шт.

3

1334171C1

DECAL

- warning (replaces 852125C2 )

1шт.

4

70373C1

PRODUCT GRAPHIC

DECAL - caution

1шт.

5

220321A1

WARNING DECAL

DECAL - warning, read the operator's manual, (replaces 1254170C1)

1шт.

6

853400C1

CHANNEL

ASSEMBLY - rear bracket cross, tie

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548 )

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

4шт.

7

815378C1

GRIP

- door holder

4шт.

8

853395C1

CHANNEL

- sub frame, tie

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces 180173) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

8шт.

9

851720C1

PIN

- frame locking

1шт.

10

853325C2

BRACKET

ASSEMBLY - front mounting, LH

1шт.

10

853326C2

BRACKET

ASSEMBLY - front mounting, RH

1шт.

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Replaces 30070R1 Hex, M16 x 70, 10.9

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

10шт.

11

853396C1

BRACKET

ASSEMBLY - rear mounting, LH

1шт.

11

853397C1

BRACKET

ASSEMBLY - rear mounting, RH shown

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (replaces 271548 )

12шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

12шт.

12

591107R1

COTTER PIN

- cotter, hair, quick attachable

2шт.

Выбрано товаров: 28
