Запчасти Case IH 2455 (8-02) - BOOM AND BUCKET INDICATOR

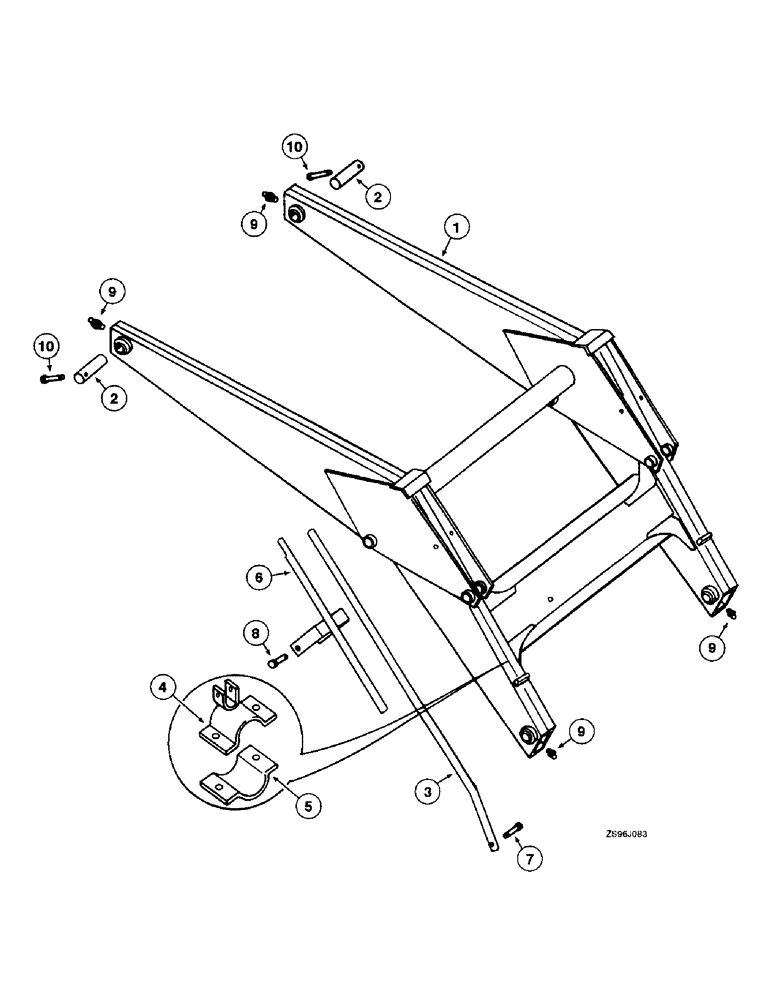

Схема запчастей Case IH 2455 - (8-02) - BOOM AND BUCKET INDICATOR
7
8
4
10
1
9
6
5
9
2
10
3
9
9
2

Артикул

Название

Примечание

Количество

1

853329C1

BOOM

ASSEMBLY - cross, without tube, 2355 loader

1шт.

1

853472C1

BOOM

ASSEMBLY - cross, with tube, 2455 loader

1шт.

2

1329594C1

PIN,28.57mm OD x 195mm L

- boom pivot (replaces 851771C1)

2шт.

3

853433C1

ROD

- bucket indicator

1шт.

4

853431C2

BRACKET

ASSEMBLY - indicator rod

1шт.

5

851382C2

CLAMP

- bracket

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

6

853428C1

SUPPORT

ASSEMBLY - indicator rod

1шт.

7

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2 (replaces 21879R1)

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

1шт.

8

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch, grade 2 (replaces 21888R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch (replaces 273355)

4шт.

10

439-5532

HEADED PIN,5/16" x 2"

PIN - headed, 5/16 x 2 inch (replaces 378484R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

Выбрано товаров: 17
