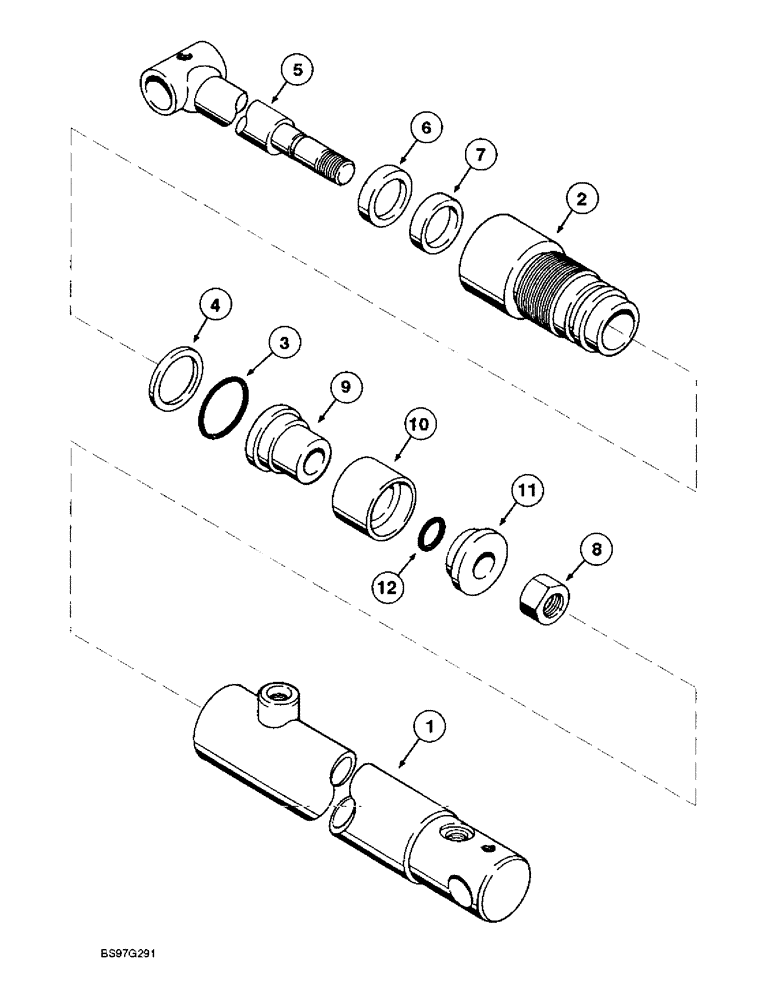

Запчасти Case IH 2455 (8-46) - WELDED DOUBLE ACTING CYLINDERS, 2 ID X 12-3/8 INCH STROKE

853502C91

CYLINDER

ASSEMBLY - 2 ID x 12-3/8 inch stroke, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

92507C1

CAP

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-3/4 ID x 2 inch OD, gland

1шт.

Part of seal kit P/N 92509C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 92509C1

1шт.

5

92506C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 92509C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 92509C1

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1) 7/8"-14, GC

1шт.

9

92526C1

PISTON

- split, rod end

1шт.

10

NSS

NOT SOLD SEPARAT

PACKING - piston

1шт.

Part of seal kit P/N 92509C1

1шт.

11

92508C1

PISTON

- split, nut end

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 3/4 ID x 7/8 inch OD, piston

1шт.

Part of seal kit P/N 92509C1

1шт.

92509C1

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 10 and 12

1шт.
