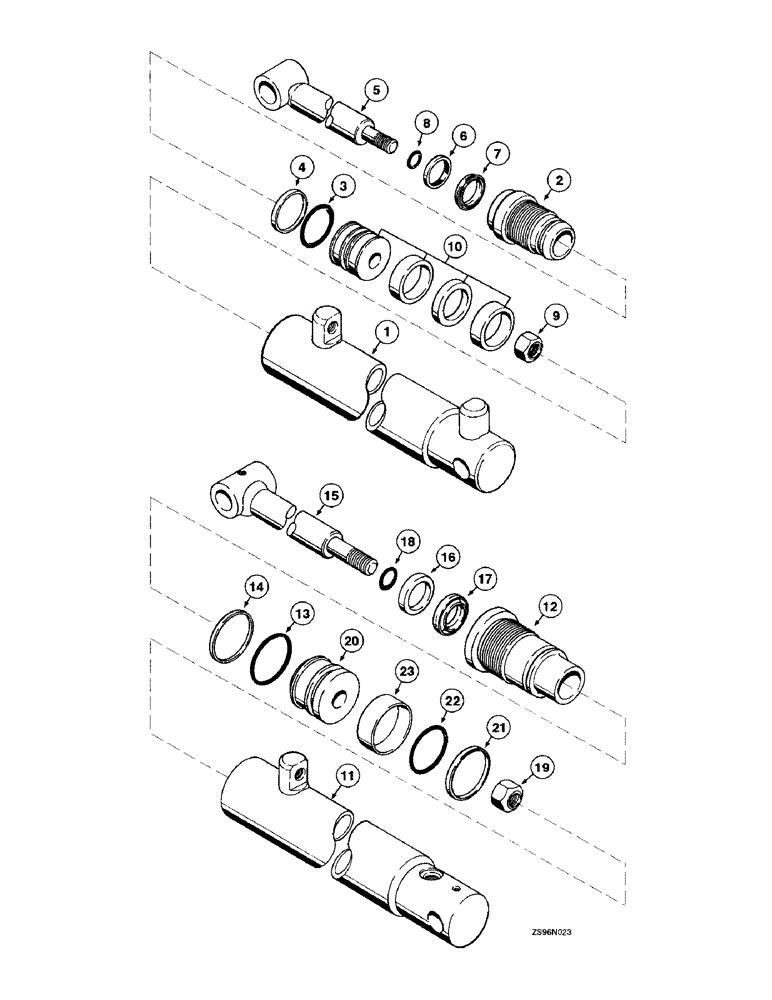

Запчасти Case IH 2455 (8-40) - WELDED DOUBLE ACTING CYLINDERS, 2-1/2 ID X 22-3/8 INCH STROKE

853307C91

CYLINDER

ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, 3/4 -16 inch ports, no longer available, order 1980142C1 cylinder assembly, see below, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

852989C1

GLAND

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 852995C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 852995C91

1шт.

5

853641C1

ROD

- piston, no longer available

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 852995C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with seals

1шт.

Part of seal kit P/N 852995C91

1шт.

852995C91

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 8 and 10

1шт.

1980142C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 ID x 22-3/8 stroke, 3/4 -16 inch ports, Includes: Ref. 11 - 23

1шт.

11

1340885C1

TUBE

- cylinder, 2-1/2 ID x 22-3/8 inch stroke

1шт.

12

93324C1

HEAD

GLAND - cylinder (replaces 851024C1), 2-1/2 ID x 22-3/8 inch stroke

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

15

1340886C1

ROD ASSY.

ROD - piston, 2-1/2 ID x 22-3/8 inch stroke

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

19

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1), 2-1/2 ID x 22-3/8" stroke 7/8"-14, GC

1шт.

20

93323C1

PISTON

- cylinder, 2-1/2 ID x 22-3/8 inch stroke

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

23

NSS

NOT SOLD SEPARAT

RING - wear, piston, 2-1/2 ID x 22-3/8 inch stroke

1шт.

Part of seal kit P/N 93325C2

1шт.

852995C91

SEAL KIT

- seal, Includes: Ref. 13, 14, 16 - 18 and 21 - 23, 2-1/2 ID x 22-3/8 inch stroke

1шт.
