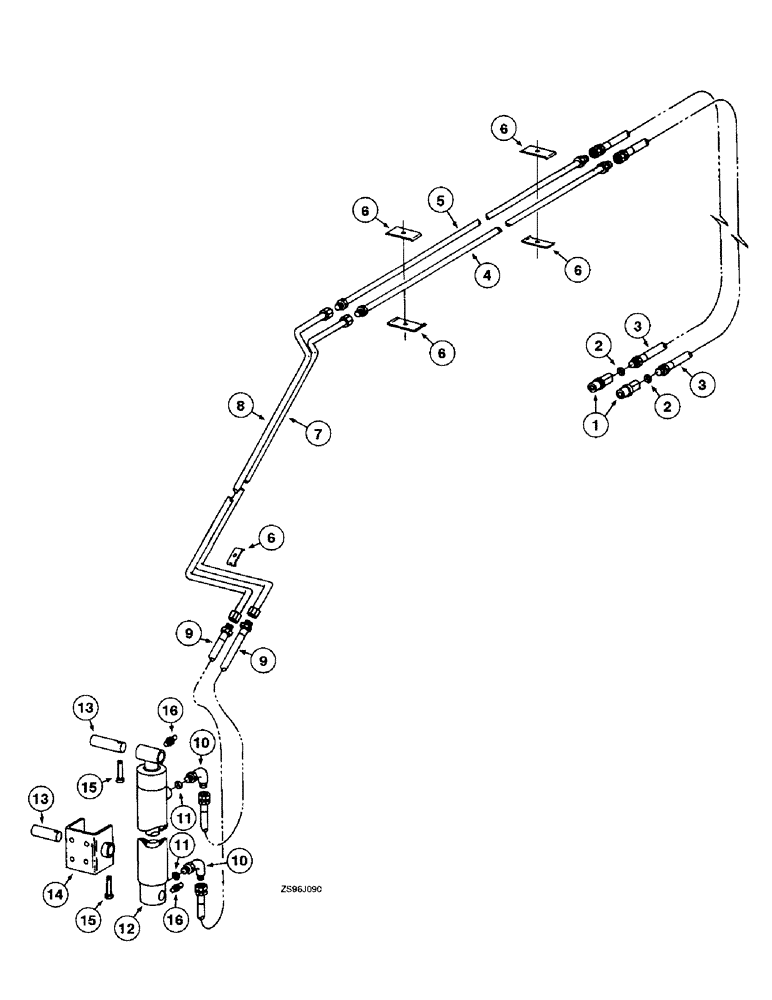

Запчасти Case IH 2455 (8-36) - FOUR TINE GRAPPLE HYDRAULIC SYSTEM

1

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

2шт.

3

853461C1

HOSE

ASSEMBLY - 1/2 ID x 252 inch long

2шт.

4

853453C1

TUBE,.5" OD

ASSEMBLY - grapple open, rear

1шт.

5

853453C1

TUBE,.5" OD

ASSEMBLY - grapple close, rear

1шт.

6

851448C1

CLAMP

- hydraulic tube

5шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch (replaces 20803R1)

3шт.

7

853452C1

TUBE,.5" OD

ASSEMBLY - grapple open, front

1шт.

8

853451C1

TUBE,.5" OD

ASSEMBLY - grapple close, front

1шт.

9

853526C1

HOSE

ASSEMBLY - cylinder, 59 inch long

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

12

853502C91

CYLINDER

ASSEMBLY - four tine grapple hydraulic, parts list Figure 8-47

1шт.

13

851444C1

PIN

- pivot, grapple cylinder

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

4шт.

14

853506C1

CHANNEL

ASSEMBLY - cylinder lower anchor

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

15

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch (replaces 109461)

2шт.
