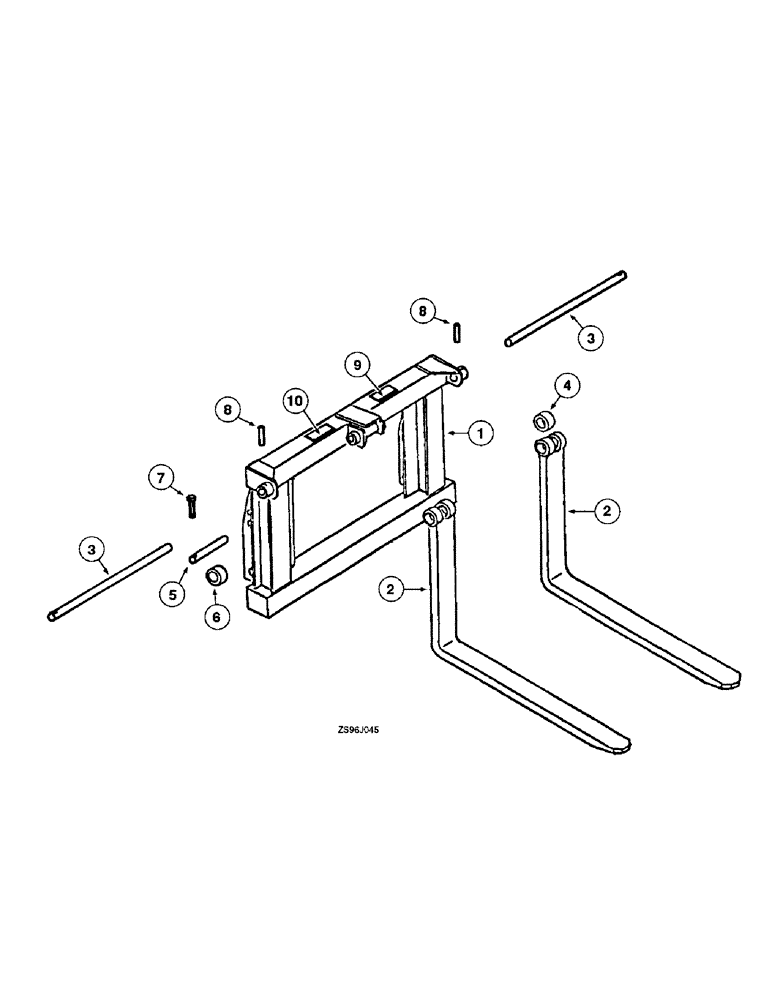

Запчасти Case IH 2455 (8-34) - FORK LIFT ATTACHMENT

1

80267C1

SUPPORT

FRAME - main, with decals

1шт.

2

T54640

TOOTH

ASSEMBLY - fork lift (replaces 851071C1)

2шт.

3

80268C1

ROD

- fork mounting

2шт.

4

T54642

BUSHING

- lock (replaces 851072C1)

2шт.

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SCREW - square head, cup point, 3/8 NC x 1/2 inch (replaces 22211R1)

2шт.

5

1329594C1

PIN,28.57mm OD x 195mm L

- boom and bucket cylinder (replaces 851771C1)

4шт.

6

378555R1

SPACER

BUSHING - spacer, for bucket cylinder pin

4шт.

7

851126C1

CLEVIS PIN

PIN - clevis, 5/16 x 2 inch

4шт.

492-11088

LOCK WASHER,7/8"

(Replaces 103327) 7/8"

4шт.

8

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

(Replaces 25383) 7/16" x 2 1/2", Slotted

2шт.

9

321-4735

DECAL

- warning, max load limit (replaces 852873C2)

1шт.

10

853649C1

PRODUCT GRAPHIC

DECAL - warning, large load rollback

1шт.
