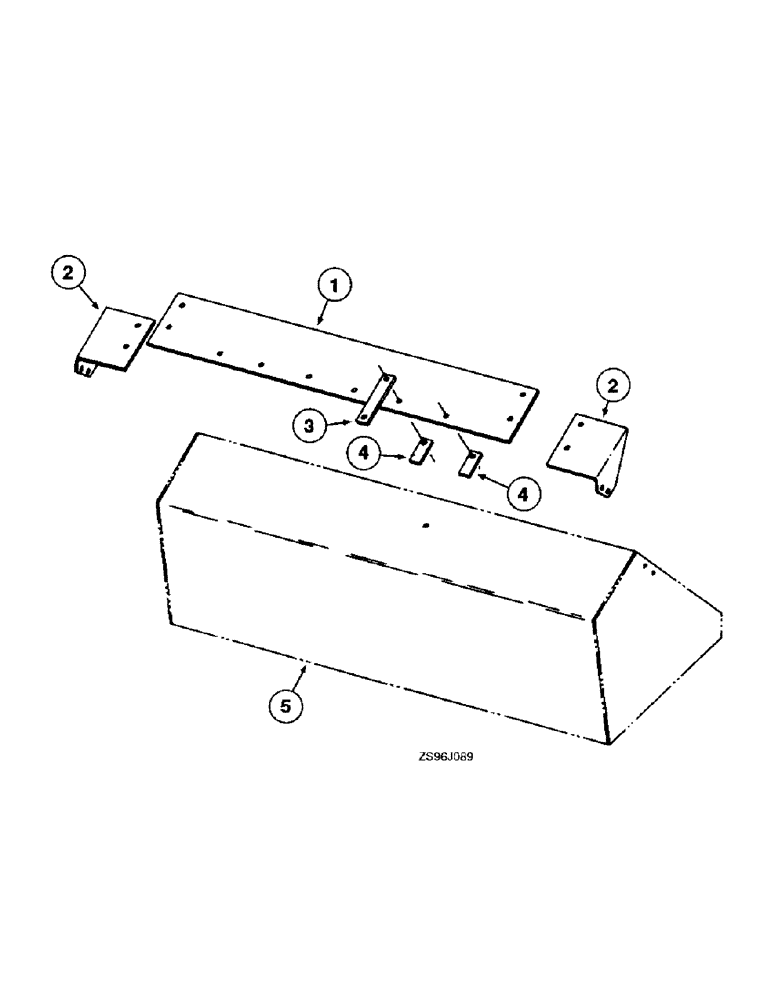

Запчасти Case IH 2455 (8-32) - SPILL GUARD ATTACHMENT, FOR USE WITH MANURE FORK OR 96 INCH LOOSE MATERIAL BUCKETS

1

80257C1

PLATE

- spill guard attachment

1шт.

2

80258C1

SUPPORT

END - plate LH

1шт.

2

80259C1

SUPPORT

END - plate RH

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

8шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (Replaces 120394) 3/8", SAE

8шт.

3

80260C1

BAR

- plate mounting

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

4

80261C1

SUPPORT

BAR - plate clamping

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces 180122)

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

6шт.

5

REF

INSTRUCTION

BUCKET ASSEMBLY - 96 inch, serviced only as a machine attachment

1шт.
