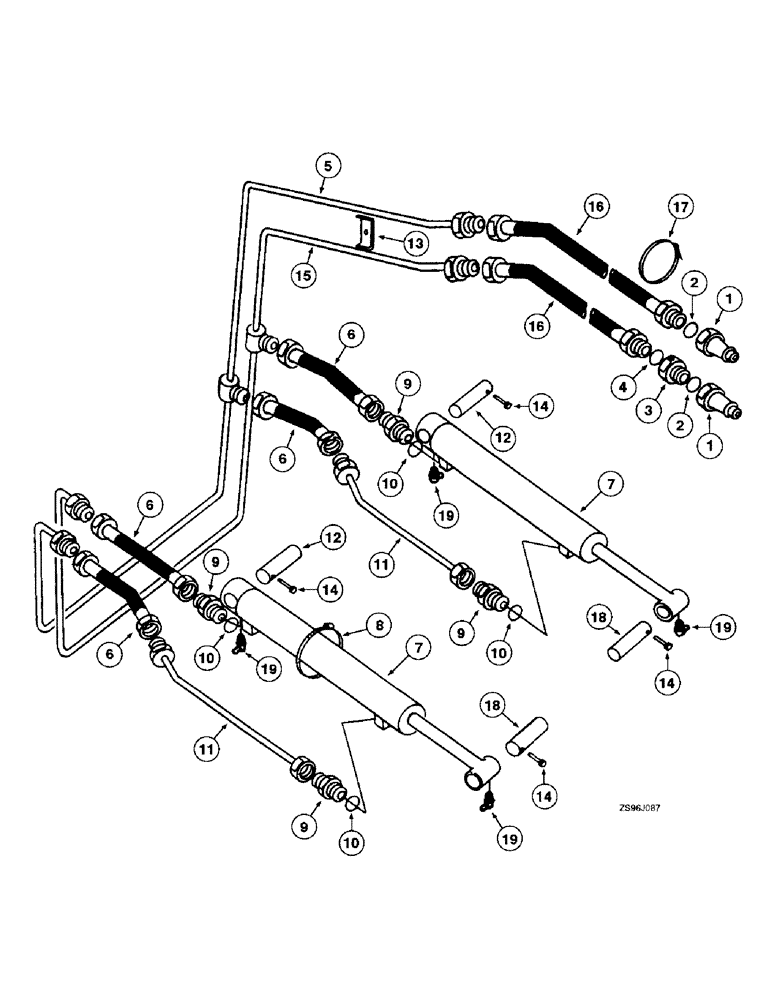

Запчасти Case IH 2455 (8-24) - BOOM LIFT HYDRAULIC SYSTEM

1

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

2шт.

3

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - oil flow to tractor valve

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

5

853359C1

TUBE,.5" OD

ASSEMBLY - boom lower, 2355 loader

1шт.

5

853484C1

TUBE,.5" OD

ASSEMBLY - boom lower, 2455 loader

1шт.

6

851789C2

HOSE

- hydraulic, 20-1/2 inches long, boom cylinder

4шт.

7

853308C91

CYLINDER

ASSEMBLY - 2-3/4 ID x 34 stroke, parts list Figure 8-42, no longer available, order 1980143C1 cylinder, see below

2шт.

7

1980143C1

CYLINDER

ASSEMBLY - 2-3/4 ID x 34 stroke, parts list Figure 8-42

2шт.

7

1272906C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-3/4 ID x 47-1/2 stroke, parts list Figure 8-44, no longer available, order 1980150C1 cylinder, see below

2шт.

7

1980150C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-3/4 ID x 47-1/2 stroke, parts list Figure 8-44

2шт.

8

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - hydraulic hose (replaces 391671R91)

2шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces 9410203), Incl. Ref 10

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

11

851786C1

HYD TUBE,12.70 mm OD x 29, 7 mm L

TUBE ASSEMBLY - boom cylinder, 2355 loader

2шт.

11

851792C1

TUBE,12.70 mm OD x 42.5, 7 mm L

ASSEMBLY - boom cylinder, 2455 loader

2шт.

12

851506C1

PIN

- boom cylinder

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

2шт.

13

851448C1

CLAMP

- hydraulic tube

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

2шт.

14

439-5530

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (replaces 378480R1)

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8" x 3/4"

4шт.

15

853358C1

TUBE,.5" OD

ASSEMBLY - boom raise, 2355 loader

1шт.

15

853485C1

TUBE,.5" OD

ASSEMBLY - boom raise, 2455 loader

1шт.

16

853461C1

HOSE

ASSEMBLY - 1/2 ID x 252 inch long

2шт.

17

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hose

1шт.

18

851506C1

PIN

- boom cylinder

2шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)

2шт.

19

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree x 1/8 inch (replaces 19630R91)

4шт.
