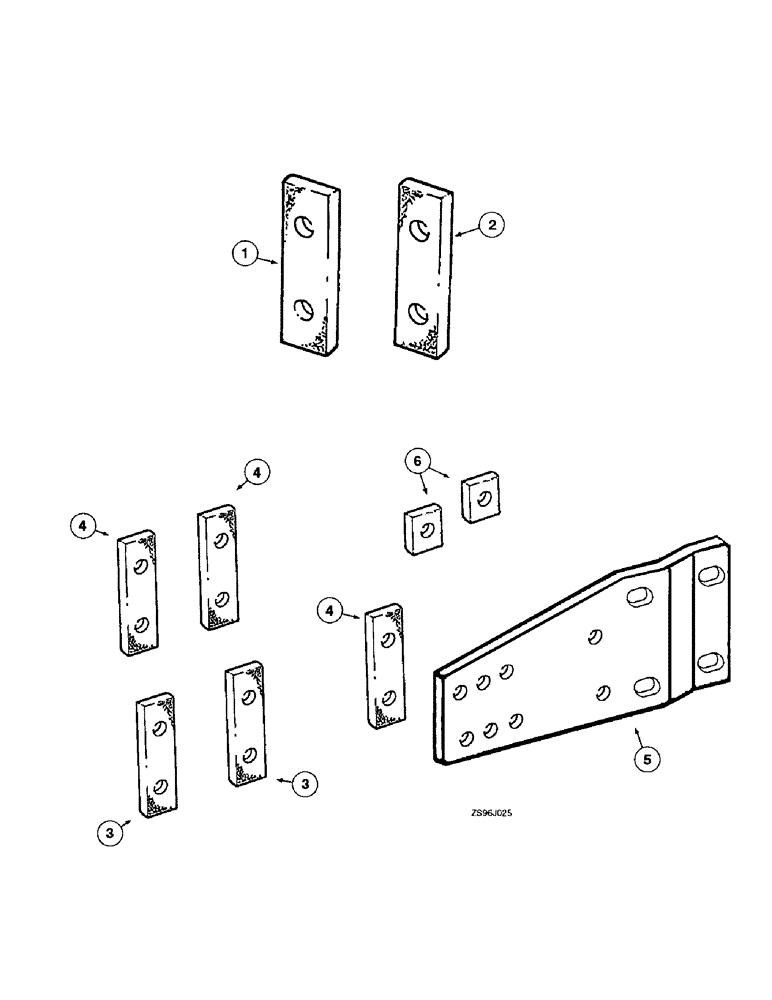

Запчасти Case IH 2450 (4-04) - SPACER MOUNTING PACKAGE

1

851828C1

BAR

- 3/8 inch, bracket spacer

8шт.

2

851832C2

BAR

- 1/2 inch, bracket spacer

8шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Replaces 271727) Hex, 5/8"-11 x 3", G5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces 121574) 5/8"

8шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch (Replaces 271725)

8шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589) 5/8"-11, G5

8шт.

3

851832C2

BAR

- 1/2 inch, bracket spacer, mounting package

2шт.

4

851828C1

BAR

- 3/8 inch, bracket spacer, mounting package

6шт.

5

851993C1

SUPPORT

- sub-frame rear bracket LH, spacer mounting package

1шт.

5

851994C1

SUPPORT

- sub-frame rear bracket RH, spacer mounting package

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723), spacer mounting package

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces 124589), Spacer mounting package 5/8"-11, G5

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened (replaces 589068R1), spacer mounting package

4шт.

6

851898C1

BAR

- bracket support rear spacer, mounting package

8шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch (replaces 271775), spacer mounting package

4шт.
