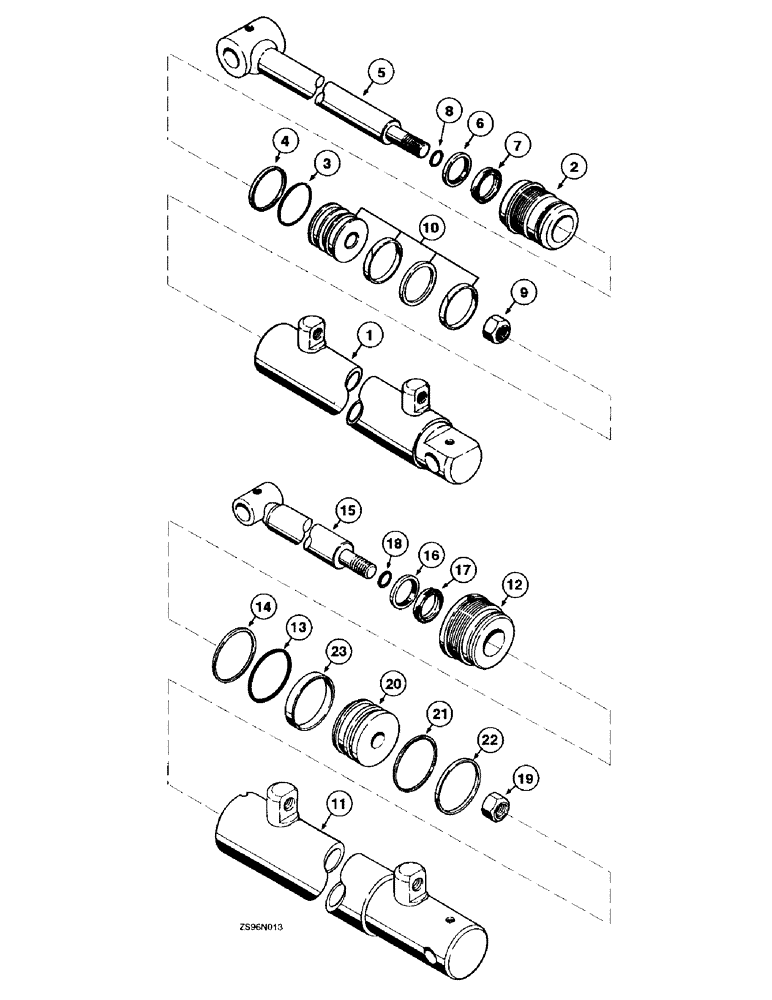

Запчасти Case IH 2450 (4-46) - WELDED DOUBLE ACTING CYLINDERS, 3 ID X 47-1/2 INCH STROKE

853646C91

CYLINDER

ASSEMBLY - 3 ID x 47-1/2 stroke, 3/4 -16 inch ports, no longer available, order 1980149C1 cylinder assembly below, Includes: Ref. 1 - 10

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

851369C1

END

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of seal kit P/N 851376C91

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 851376C91

1шт.

5

853648C1

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 851376C91

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal kit P/N 851376C91

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of seal kit P/N 851376C91

1шт.

9

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF (replaces 9413974)

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - with seals

1шт.

Part of seal kit P/N 851376C91

1шт.

851376C91

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 8 and 10

1шт.

1980149C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3 ID x 47-1/2 stroke, 3/4 -16 inch ports, Includes: Ref. 11 - 23

2шт.

11

1340901C1

TUBE ASSY.

TUBE - cylinder, 3 ID x 47-1/2'' stroke

1шт.

12

1340877C1

HEAD

GLAND - cylinder, 3 ID x 47-1/2'' stroke

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring , 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

15

1340902C1

STEM

ROD - piston, 3 ID x 47-1/2'' stroke

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

19

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, (Replaces nut 20268R1), 3 ID x 47-1/2'' stroke 7/8"-14, GC

1шт.

20

1340879C1

PISTON

- cylinder, 3 ID x 47-1/2'' stroke

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup, piston seal, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

23

NSS

NOT SOLD SEPARAT

RING - wear, piston, 3 ID x 47-1/2'' stroke

1шт.

Part of seal kit P/N 1340884C1

1шт.

1340884C1

SEAL KIT

- seal, Includes: Ref. 13, 14, 16 - 18 and 21 - 23, 3 ID x 47-1/2'' stroke

1шт.
