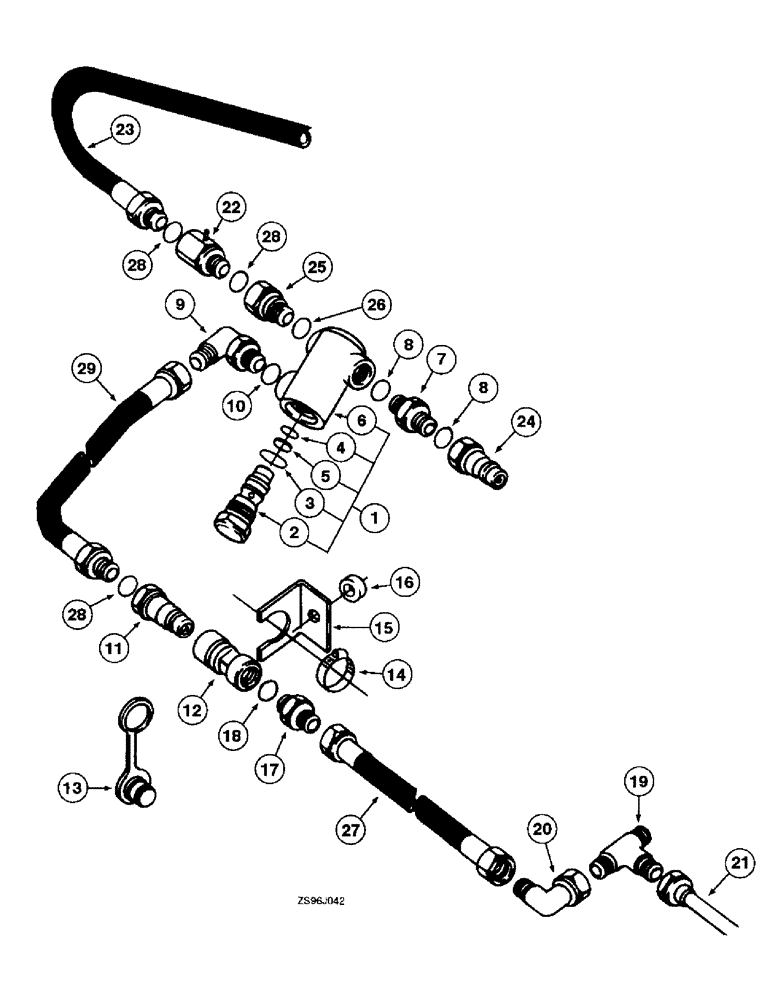

Запчасти Case IH 2450 (4-40) - HYDRAULIC PRESSURE RELIEF SYSTEM

1

852984C91

VALVE

ASSEMBLY - relief, hydraulic pressure, Includes: Ref. 2 - 6

1шт.

2

852986C1

VALVE

- relief, Includes: Ref. 3 - 5

1шт.

852988C1

SEAL KIT

- seal repair, relief valve service, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 13/16 x 1 x 3/32, order kit 852988C1

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 9/16 x 3/4 x 3/32, order kit 852988C1

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - back-up, order kit 852988C1

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - valve, order valve 852984C91

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss (replaces 384539R1), Incl. Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 10

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

11

1272399C2

QUICK MALE COUPLING

COUPLER - self-sealing, male, 7/8 inch NF, ISO standard (replaces 395149R1)

1шт.

12

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (replaces 395150R91)

1шт.

13

373220R1

PLUG

- dust, plastic

1шт.

13

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. (Replaces 333710R91) #16, 0.81/1.50 Type F Worm

1шт.

15

851569C1

ANGLE

- coupler mounting

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch (Replaces 271723)

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch (replaces 464623R1)

1шт.

16

139254C1

SPACER

- mounting angle

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - short, 3/4 (replaces 574479R1)

1шт.

19

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

- front, hose return to tractor housing (replaces 9403101), Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel (replaces 9410283)

1шт.

21

REF

INSTRUCTION

TUBE - tractor auxiliary valve return, part of tractor

1шт.

22

851594C91

CHECK VALVE

RESTRICTOR ASSEMBLY - boom line

1шт.

23

REF

INSTRUCTION

HOSE - boom line, for service part refer to boom hydraulics

1шт.

24

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers

1шт.

25

372852R1

ADAPTER

UNION - valve assembly, hydraulic control, Includes: Ref. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

27

853414C1

HOSE

ASSEMBLY - 43 inch long, hydraulic return, front

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

29

637300R91

HOSE

ASSEMBLY - 25-1/2 inch long, hydraulic return, rear

1шт.
