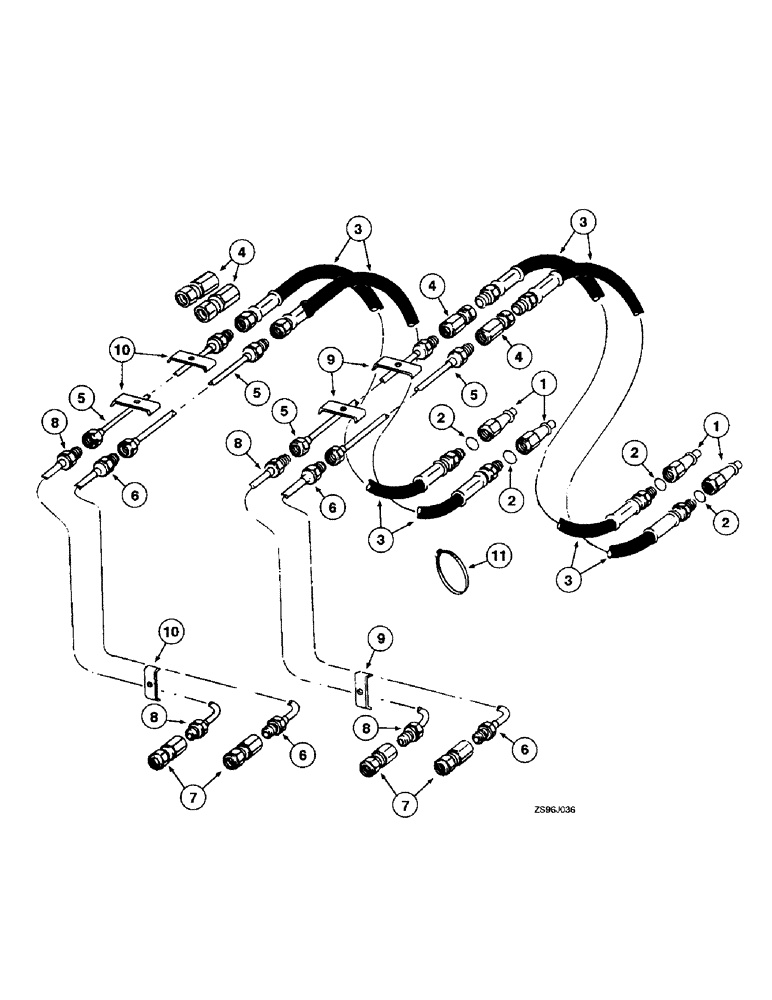

Запчасти Case IH 2450 (4-26) - AUXILIARY HYDRAULIC SYSTEM

1

REF

INSTRUCTION

COUPLER ASSEMBLY - hose male, refer to hydraulic couplers, Figure 4-33

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Replaces 364885R1)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces 570828R1)

1шт.

3

851772C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection

2шт.

3

851773C1

HOSE

ASSEMBLY - 1/2 ID x 226 inch long, with 7/8-14 inch connections, cut 226 inches from 407120R3 and use 1 9977928R1 connection and 1 997974R1 connection

2шт.

3

4300190R91

HOSE

ASSEMBLY - 1/2 ID x 160 inch long, 7/8-14 JIC female swivel and 7/8-14 male fixed O-ring boss, no longer available

2шт.

3

4300189R91

HOSE

ASSEMBLY - 1/2 ID x 85 inch long, 7/8-14 male fixed O-ring boss and 1/2 male fixed pipe rigid, no longer available

2шт.

3

T54630

HOSE

ASSEMBLY - 1/2 ID x 160 inch long, 1/2 male fixed pipe rigid both ends (replaces 851116C1), no longer available

2шт.

3

REF

INSTRUCTION

HOSE - bulk, 1/2 ID SAE 100R2 two wire braid, cut to required length from 50 feet roll marked 990629R1 and use appropriate fittings

1шт.

4

851107C1

CONNECTOR, ELEC

CONNECTOR - for use with T54630 hoses

2шт.

5

851104C1

TUBE,.5" OD x 60.625", 1.375" L

ASSEMBLY - boom rear, 2 used with three circuit, 4 used with four circuit

2-4шт.

6

851105C1

TUBE,.5" OD

ASSEMBLY - boom front LH, 1 used with three circuit, 2 used with four circuit

1-2шт.

7

851107C1

CONNECTOR, ELEC

CONNECTOR - tube boom front, 2 used with three circuit, 4 used with four circuit

2-4шт.

8

851106C1

TUBE,.5" OD

ASSEMBLY - boom front RH, 1 used with three circuit, 2 used with four circuit

1-2шт.

9

851448C1

CLAMP

- dual tube, 3 used with three and four circuit

3шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces 180124)

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

10

T50065

PIN

- dual tube, 3 used with four circuit (replaces 851132C1)

3шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 180128)

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces 120382) 3/8"

3шт.

11

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, hose

6шт.
