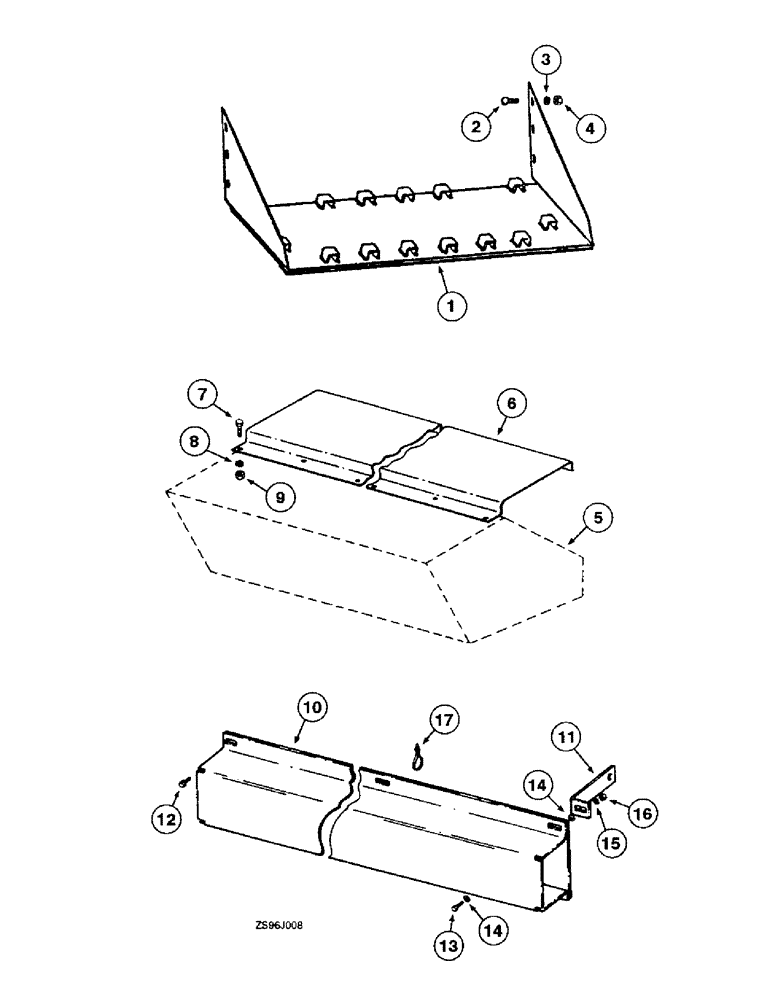

Запчасти Case IH 2450 (4-20) - TINE COVER

1

REF

INSTRUCTION

COVER ASSEMBLY - tine, 60 inch manure fork and general purpose bucket, serviced only as a machine attachment

1шт.

1

REF

INSTRUCTION

COVER ASSEMBLY- tine 72, inch manure fork and general purpose bucket, serviced only as a machine attachment

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch (replaces 598813R1)

6шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

6шт.

5

REF

INSTRUCTION

BUCKET - 60 or 72 inch manure fork, serviced only as a machine attachment, spillguard

1шт.

5

REF

INSTRUCTION

BUCKET- 65, 72 or 84 inch material, serviced only as a machine attachment, spillguard

1шт.

6

REF

INSTRUCTION

GUARD- bucket spill, serviced only as a machine attachment

1шт.

7

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

SCREW - hex washer head, self-tapping, 3/8 x 7/8 inch (replaces 850680C1), spillguard

9шт.

8

492-11038

LOCK WASHER,3/8"

(Replaces 120382), Spillguard 3/8"

9шт.

9

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377), Spillguard 3/8"-16, G5

9шт.

10

851758C1

TUBE

ASSEMBLY - power supply hose guide, spillguard

1шт.

11

851759C2

SUPPORT TUBE,5.2 mm L

SUPPORT - guide tube, power supply

2шт.

12

851942C1

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1 1/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch, power supply guide

2шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces 180120), Power supply guide Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

14

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(Replaces 619856R1), Power supply guide 3/8" x 1" x .063"

2шт.

15

492-11038

LOCK WASHER,3/8"

(Replaces 120382), Power supply guide 3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

(Replaces 120377), Power supply guide 3/8"-16, G5

2шт.

17

813579C1

CABLE TIE

STRAP - tie, hose, power supply guide

1шт.
