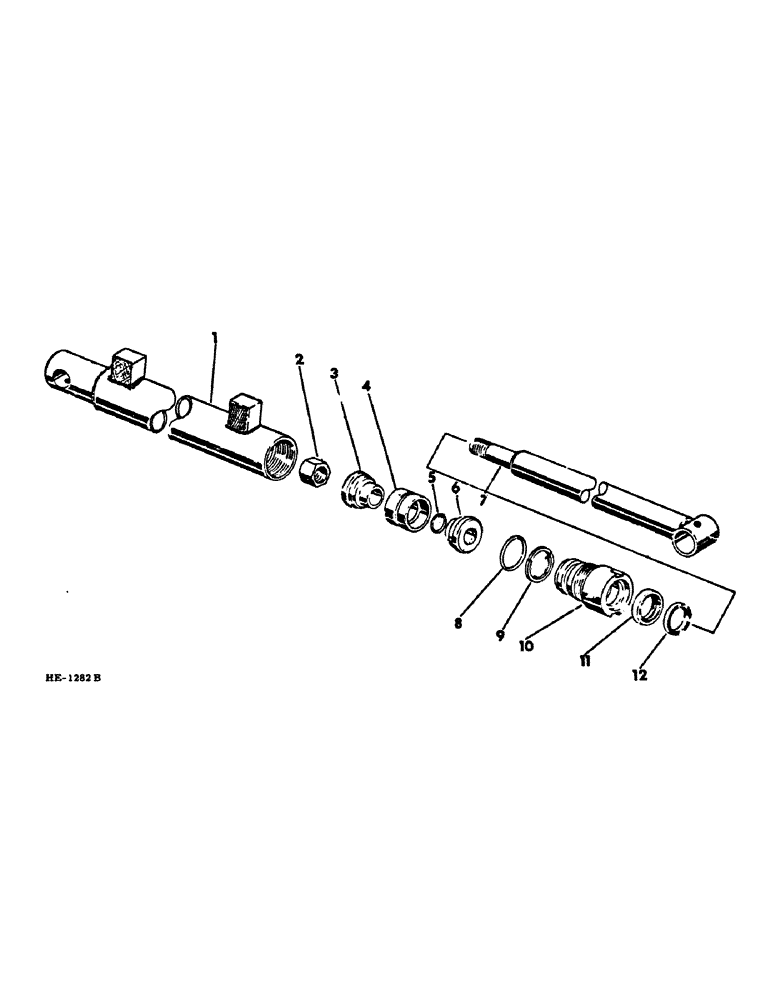

Запчасти Case IH 2350 (D-07) - BOOM LIFT HYDRAULIC CYLINDER

851838C91

CYLINDER ASSY, boom lift (composed of parts listed below)

2шт.

1

851733C1

BODY

cylinder

1шт.

2

23261R1

LOCK NUT,1"-14, GC

NUT, 1-14 hex lock

1шт.

3

851736C1

END, piston rod inner half

1шт.

4

SEAL, 3 inch dia heavy gland (not serviced separately) (for service order 1-851738C1, kit)

1шт.

5

O-RING, 1-1/4 I.D. x 1/8 section (not serviced separately) (order 1-851738C1, kit)

1шт.

6

851737C1

END

piston rod outer half

1шт.

7

851734C1

ROD

cylinder piston

1шт.

8

O-RING, 3" dia x 3/16 section (not serviced separately) (order 1-851738C1, kit)

1шт.

9

RING, 3" dia x 3/16 section back-up (not serviced separately) (order 1-851738C1, kit)

1шт.

10

851735C1

INSTRUCTION

END, hydraulic cylinder

1шт.

11

SEAL, cyl end 1-3/4 I.D. gland (not serviced separately) (order 1-851738C1, kit)

1шт.

12

SEAL, piston rod dust (not serviced separately) (order 1-851738C1, kit)

1шт.

851738C1

SEAL KIT

hydraulic cylinder seal service

1шт.
