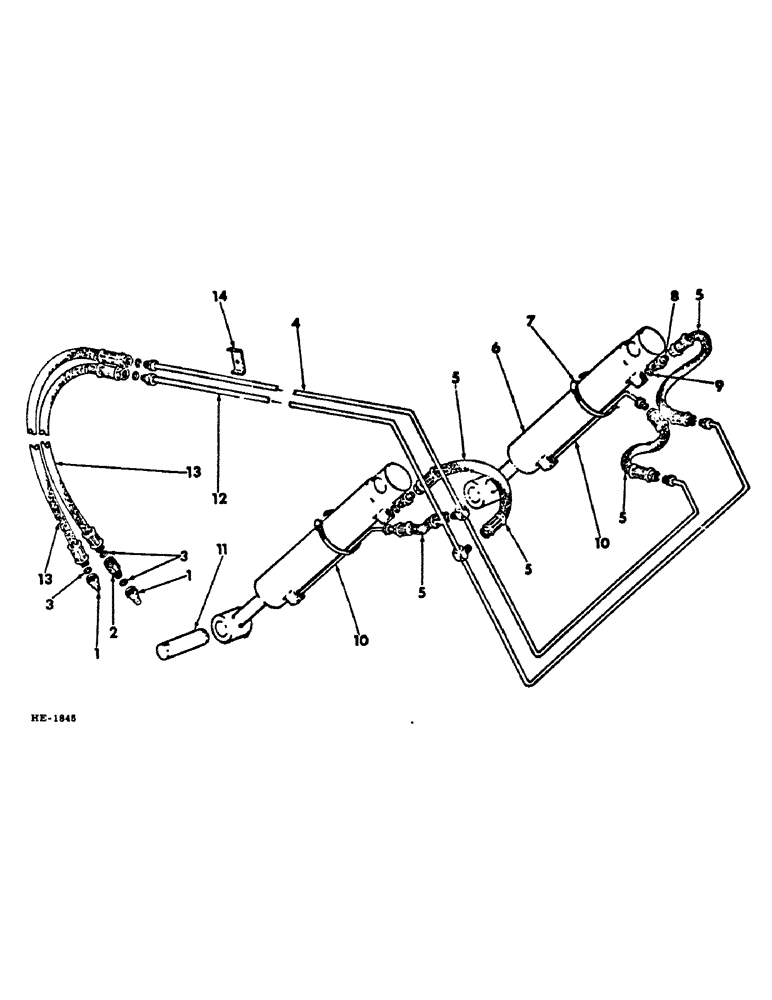

Запчасти Case IH 2350 (D-06) - BOOM LIFT HYDRAULIC SYSTEM

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male (for 66 series tractor)

2шт.

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male

2шт.

2

851594C91

CHECK VALVE

RESTRICTOR ASSY, flow

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler and hose

4шт.

4

851763C1

TUBE

boom lower hydraulic

1шт.

5

851789C1

HOSE

boom cylinder

4шт.

6

851838C91

CYLINDER ASSY, boom (for component parts refer to boom lift hydraulic cylinder)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg. lub

4шт.

7

391671R91

HOSE CLAMP,#56, 3.06/4.00 Type F Worm

CLAMP, hyd hose

2шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg. flared tube short swivel

4шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cylinder

4шт.

10

851786C1

HYD TUBE,12.70 mm OD x 29, 7 mm L

TUBE, boom cylinder

2шт.

11

851770C1

PIN

boom cylinder

4шт.

21714R1

WASHER

1.156 x 2.00 x .105

4шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

4шт.

12

851764C1

TUBE

boom upper hydraulic

1шт.

13

HOSE ASSY, 1/2" I.D. x 226" SAE 100 R2 to be cut from 50 foot roll part number 999629R1 (recommended hydraulic parts)

1шт.

14

851448C1

CLAMP

tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
