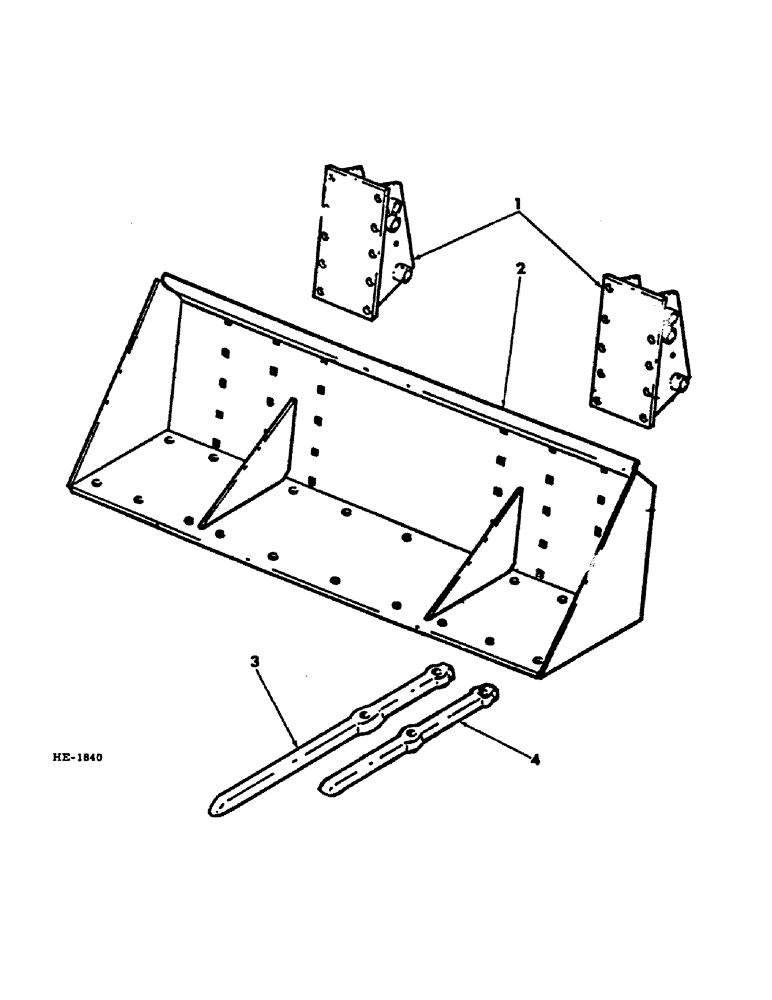

Запчасти Case IH 2350 (D-04) - MANURE BUCKET

1

851797C1

SUPPORT

ASSY, bucket mounting

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

20шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

120384

WASHER,1/2"

LOCK, 1/2"

20шт.

2

BUCKET, 60 inch manure (order on machine order form)

1шт.

2

BUCKET, 72 inch manure (order on machine order form)

1шт.

3

851425C1

TINE

FINGER, 60 inch bucket inner

6шт.

3

851817C1

TINE

FINGER, 72 inch bucket inner

8шт.

19064R1

BOLT,1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 no. 3 plow

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

851426C1

TINE

FINGER, 60 inch bucket outer

2шт.

4

851818C1

TINE

FINGER, 72 inch bucket outer

2шт.

19064R1

BOLT,1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 no. 3 plow

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
