Запчасти Case IH 2350 (D-03) - SPACER MOUNTING PACKAGE

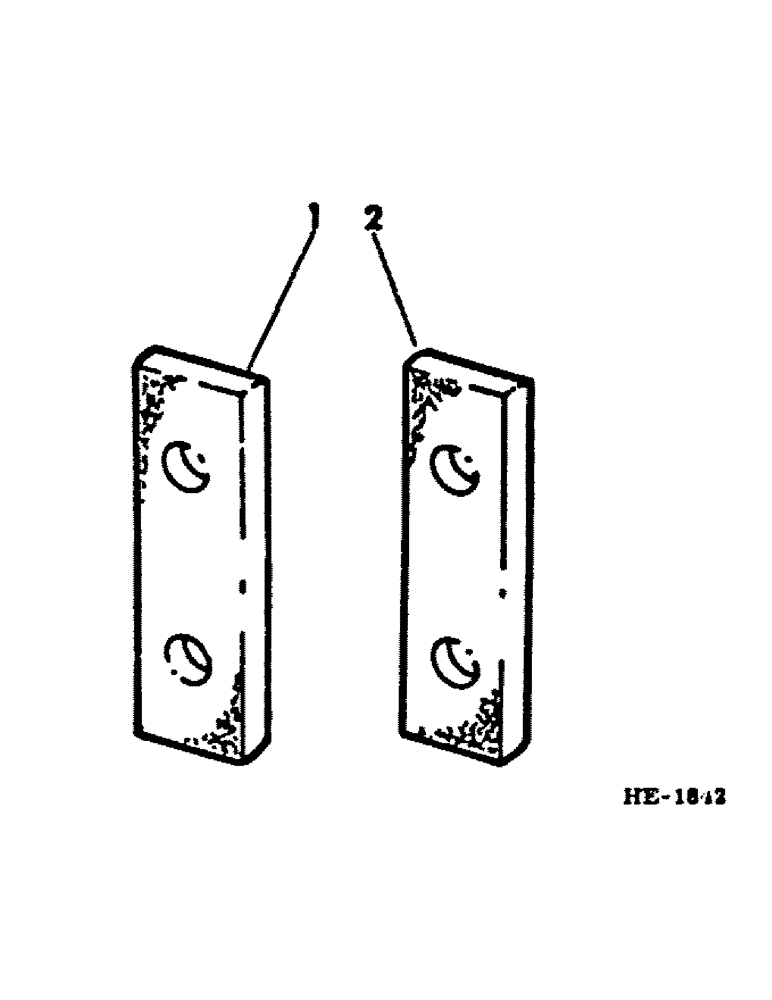

Схема запчастей Case IH 2350 - (D-03) - SPACER MOUNTING PACKAGE

Артикул

Название

Примечание

Количество

1

851828C1

BAR

bracket spacer, 3/8 inch

8шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

8шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex-hd

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

851832C1

BAR

bracket spacer 1/2 inch

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

8шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

Выбрано товаров: 10
