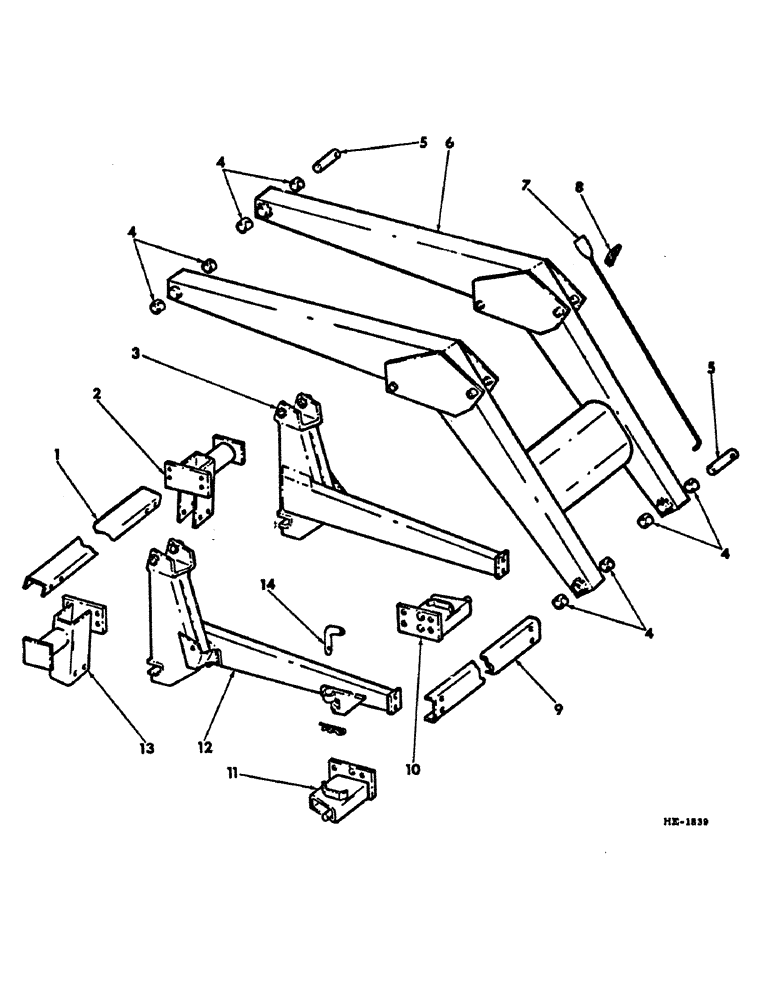

Запчасти Case IH 2350 (D-02) - SUB FRAME AND BOOM
№
Артикул
Название
Примечание
Количество
1
851849C1
CHANNEL
bracket tie
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
178374R1
WASHER
.531 x 1.250 x .054
8шт.
2
851854C1
BRACKET
ASSY, rear mounting
1шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
BOLT, 5/8-11 x 1-3/4 hex-hd
4шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 hex
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
3
851716C1
FRAME
ASSY, lh sub
1шт.
4
378478R1
BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L
inner pivot
8шт.
5
851771C1
PIN
bucket pivot
4шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
4шт.
6
851701C91
BOOM
ASSY, loader
1шт.
378478R1
BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L
8шт.
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
FITTING, 1/4 straight drive lub
4шт.
7
851826C1
ROD
bucket indicator
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
619856R1
WASHER
.406 x 1.000 x .054
1шт.
8
851704C1
ANGLE
indicator support
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex-hd
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
9
851755C1
CHANNEL
sub-frame tie
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
20601R1
WASHER
.531 x 1.250 x .090
4шт.
10
851856C1
BRACKET
ASSY, front lh
1шт.
271723
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 x 2 hex-hd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
11
851857C1
BRACKET
ASSY, front RH
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 x 2 hex-hd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
12
851717C1
FRAME
ASSY, RH sub
1шт.
13
851855C1
BRACKET
ASSY, rear mountin RH
1шт.
NLS
NO LONGER SERVICED
BOLT, 5/8-11 x 1-3/4 hex-hd
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
14
851720C1
PIN
frame locking
2шт.
591107R1
COTTER PIN
Q.A. Cotter
2шт.
Выбрано товаров: 40
