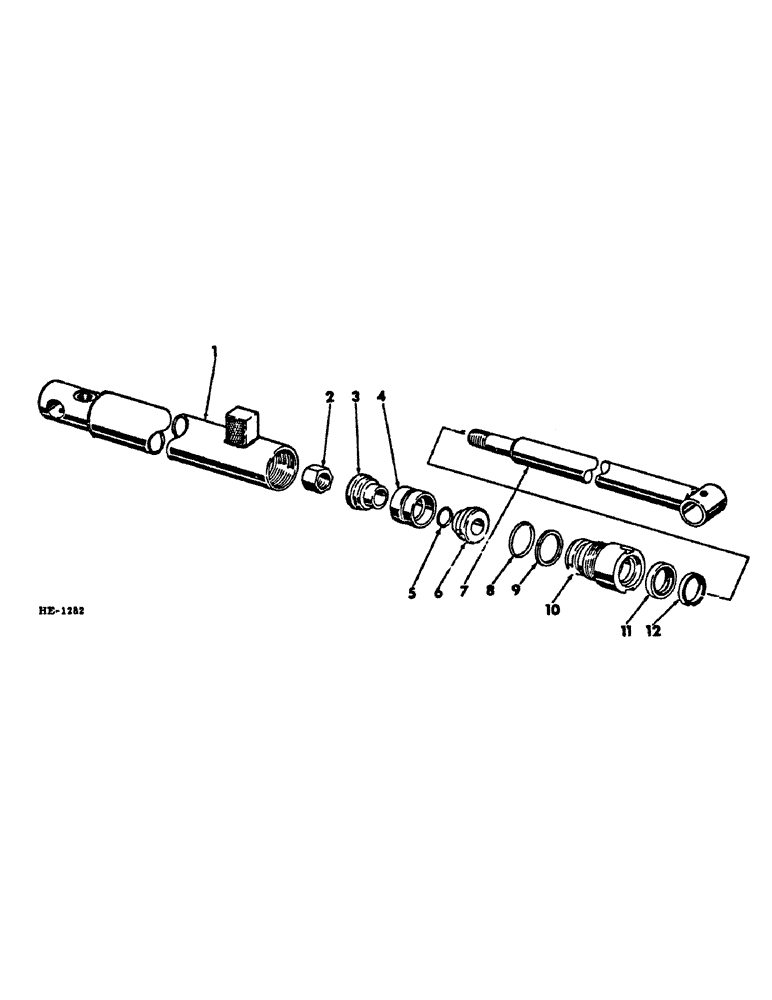

Запчасти Case IH 2350 (D-09) - BUCKET CONTROL HYDRAULIC CYLINDER

851790C91

CYLINDER

ASSY, bucket control (composed of parts listed)

2шт.

1272456C91R

REMAN-HYD CYLINDER

2350 INTERNATIONAL LOADER, ASSY, bucket control, Reman for New PN 851790C91

2шт.

1272456C91C

CORE-HYD CYLINDER

Return Number

2шт.

1

851719C1

BODY

cylinder

1шт.

2

19853R1

LOCK NUT,7/8"-14

NUT, 7/8 NF piston rod

1шт.

3

851730C1

END, piston rod inner half

1шт.

4

SEAL, 2-1/2" dia heavy duty gland (not serviced separately) (order 1-851732C1, kit)

1шт.

5

O-RING, 7/8" dia x 1/16 section (not serviced separately) (order 1-851732C1, kit)

1шт.

6

851731C1

END, piston rod outer half

1шт.

7

851726C1

ROD

cylinder piston

1шт.

8

O-RING, 2-1/2 O.D. x 3/16 section (not serviced separately) (order 1-851732C1, kit)

1шт.

9

RING, 2-1/2 O.D. x 3/16 well back-up (not serviced separately) (order 1-851732C1, kit)

1шт.

10

851727C1

CYLINDER END CAP

END, hyd cylinder

1шт.

11

SEAL, 1-1/2 dia cyl end gland (not serviced separately) (order 1-851732C1, kit)

1шт.

12

SEAL, piston rod dust (not serviced separately) (order 1-851732C1, kit)

1шт.

851732C1

KIT

seal service

1шт.
