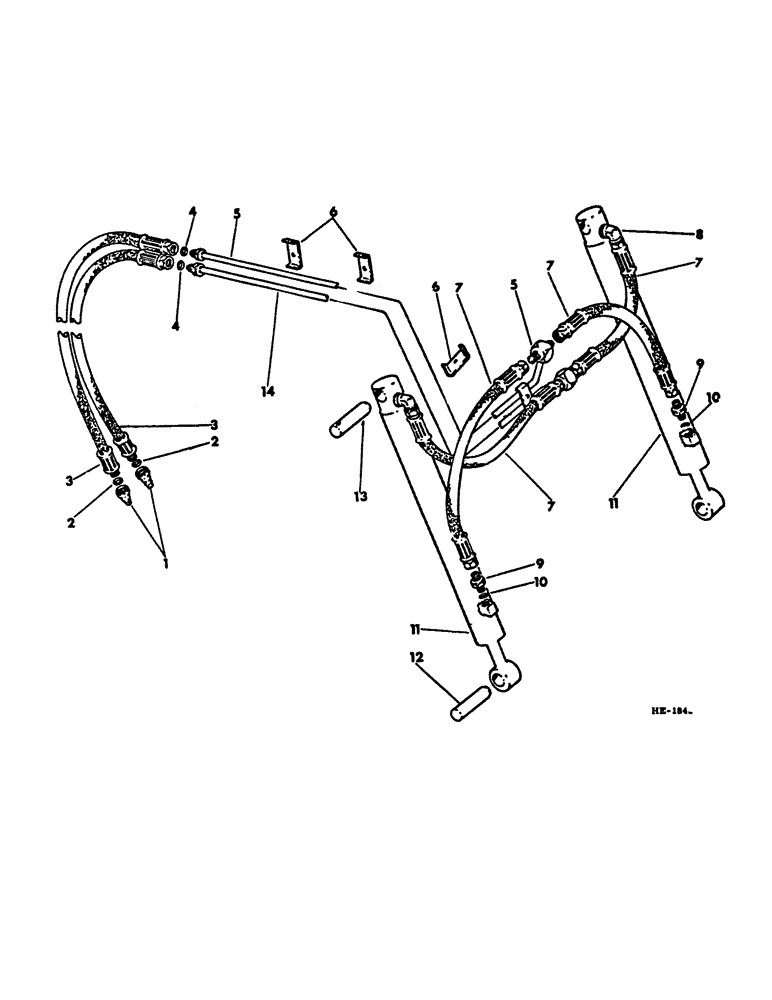

Запчасти Case IH 2350 (D-08) - BUCKET HYDRAULIC SYSTEM

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male (for 66 series tractors)

2шт.

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler

2шт.

3

HOSE ASSY, 1/2" I.D. x 214" (sae 100 R2 hose to be cut from 50 foot roll part number 999629R1) (recommended hydraulic parts)

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic hose

1шт.

5

851784C1

TUBE

bucket rollback hydraulic

1шт.

6

851729C1

HOSE CLAMP

CLAMP, tube

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

851788C1

HOSE

bucket cylinder

4шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hyd 37 deg. flared tube short swivel 90 deg.

2шт.

9

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg. flared tube short swivel C-Z

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

bucket cylinder

4шт.

11

851790C91

CYLINDER

ASSY, bucket control (for component parts refer to "bucket control hydraulic cylinder)

1шт.

11

1272456C91R

REMAN-HYD CYLINDER

2350 INTERNATIONAL LOADER, ASSY, bucket control, Reman for New PN 851790C91

1шт.

11

1272456C91C

CORE-HYD CYLINDER

Return Number

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg. lub

4шт.

12

851771C1

PIN

bucket cylinder lower

2шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

13

851770C1

PIN

bucket cylinder upper

2шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

14

851785C1

TUBE

bucket dump hydraulic

1шт.
